So... I took my servo saver assembly apart.

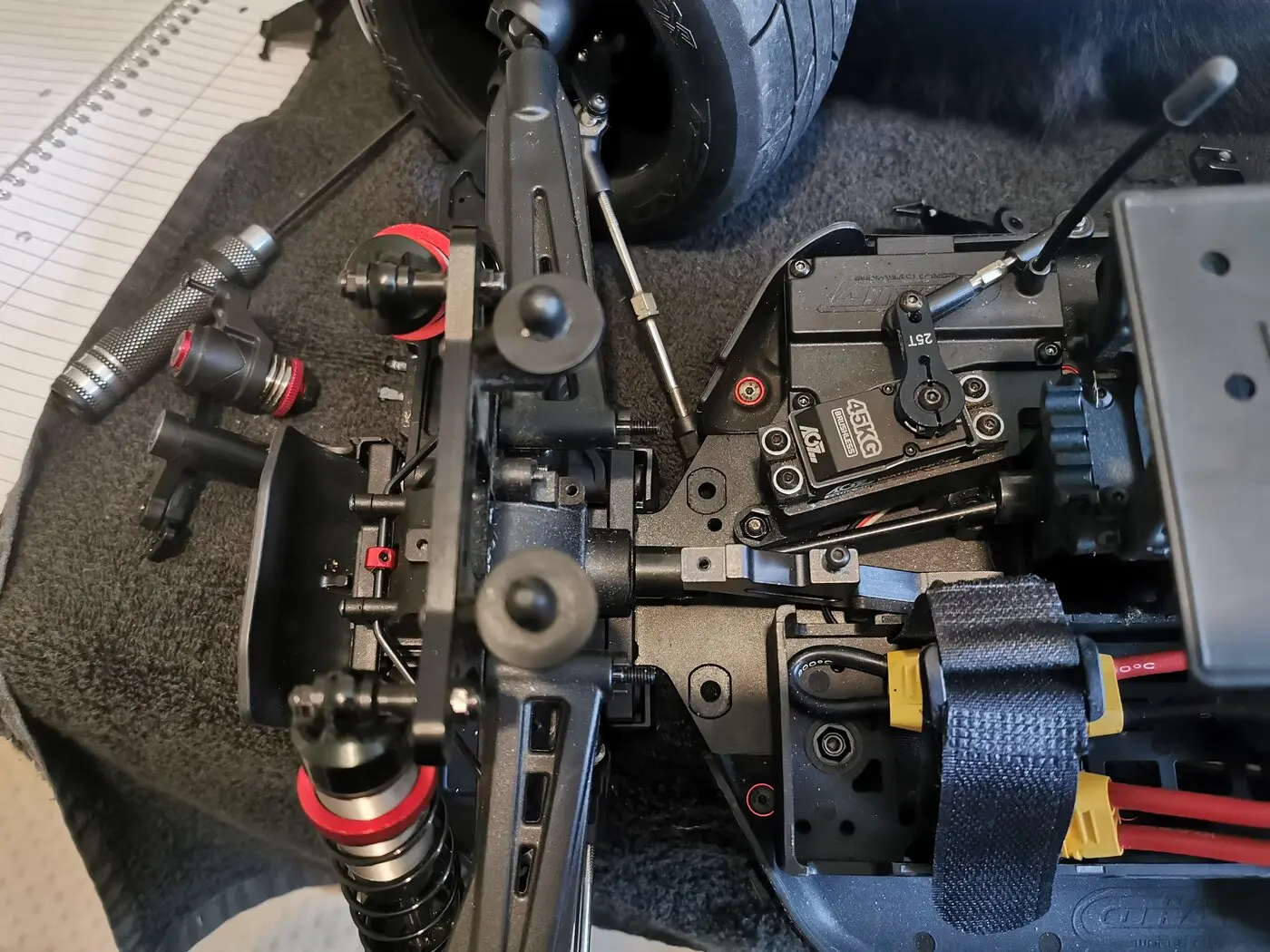

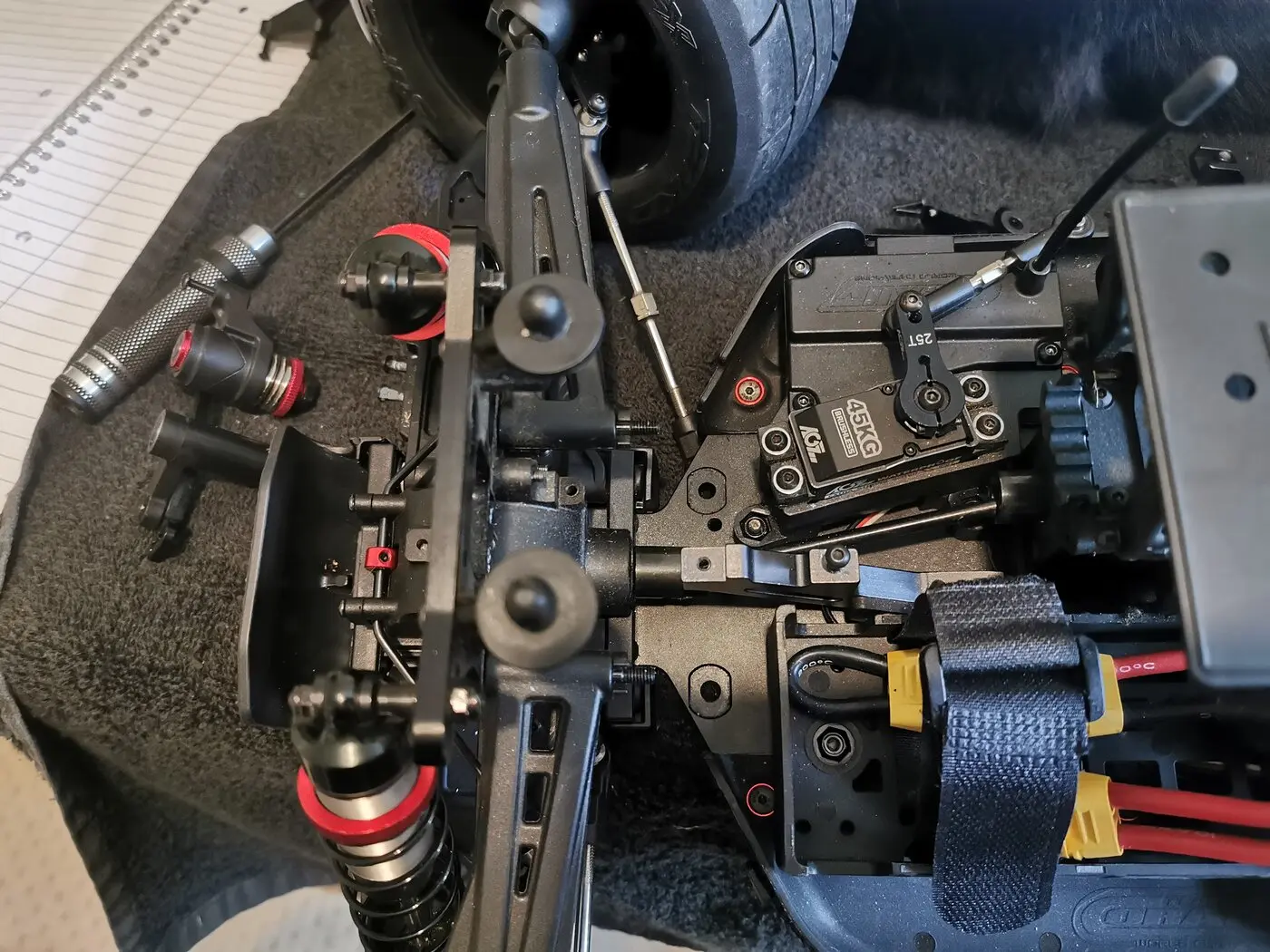

Rather than poke things through holes and scrape off the anodising in the process, I just took it apart and lifted the assembly up from the top.
This necessitated removal of the front Brace, the top plate, the trackrods (from the ackerman plate side) and the front upper wishbone pivots. About 18 screws in total.
As KT mentioned in one of his videos (he whinged about it quite a lot) - the servo saver posts are keyed into the chassis. So working from the top makes sense.
There's no point mucking about. It's 18 screws. They're tight - many of them thread-locked into place. Use hand tools. 2mm button heads thread locked into place require some torque - so use quality hex tools, otherwise you'll be chasing your tail with rounded out button heads. On the plus side - I didn't need to use any heat and I didn't bloody any of my knuckles, so as jobs go, it's actually OK.
Did I mention 18 screws?

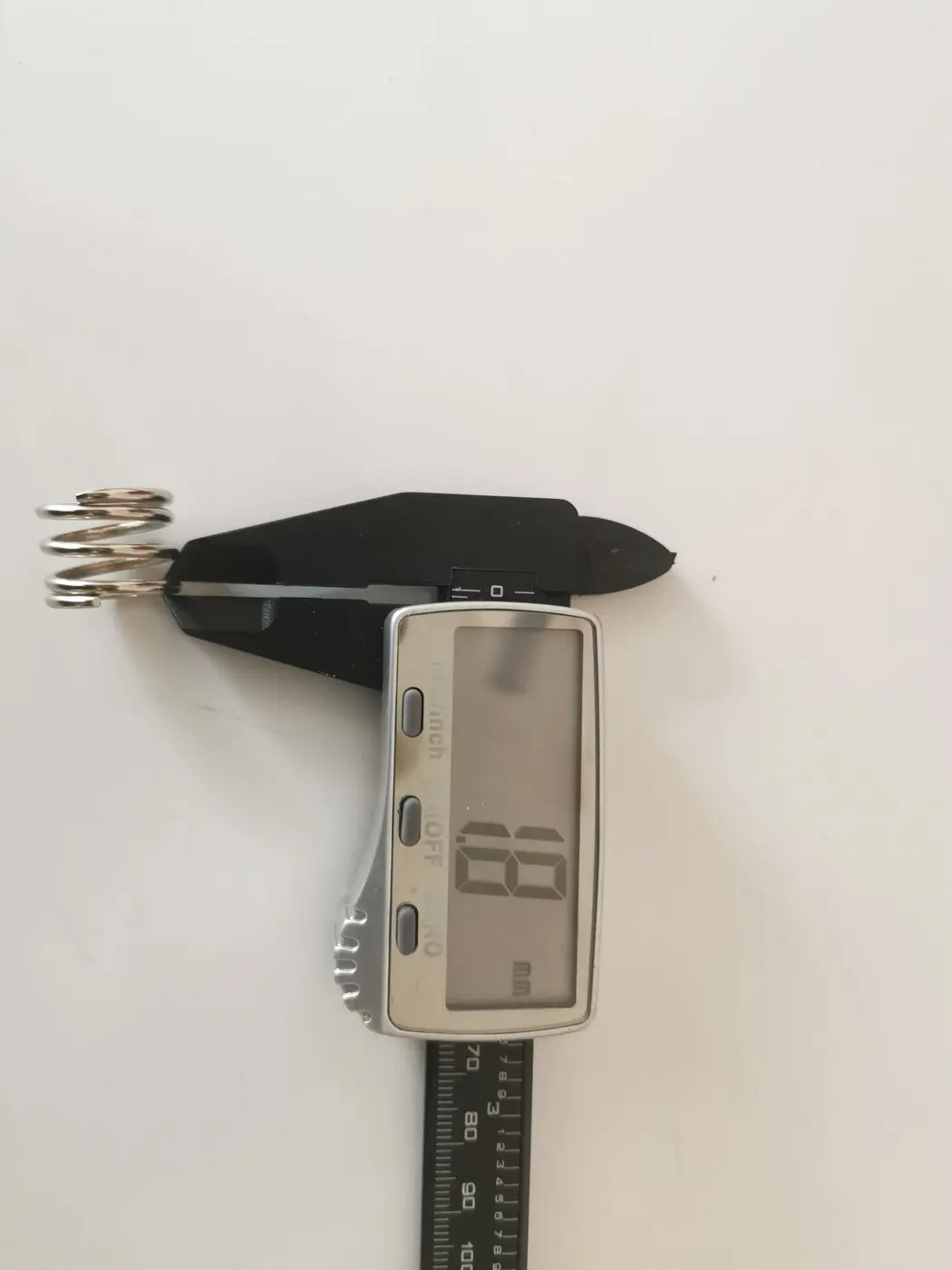

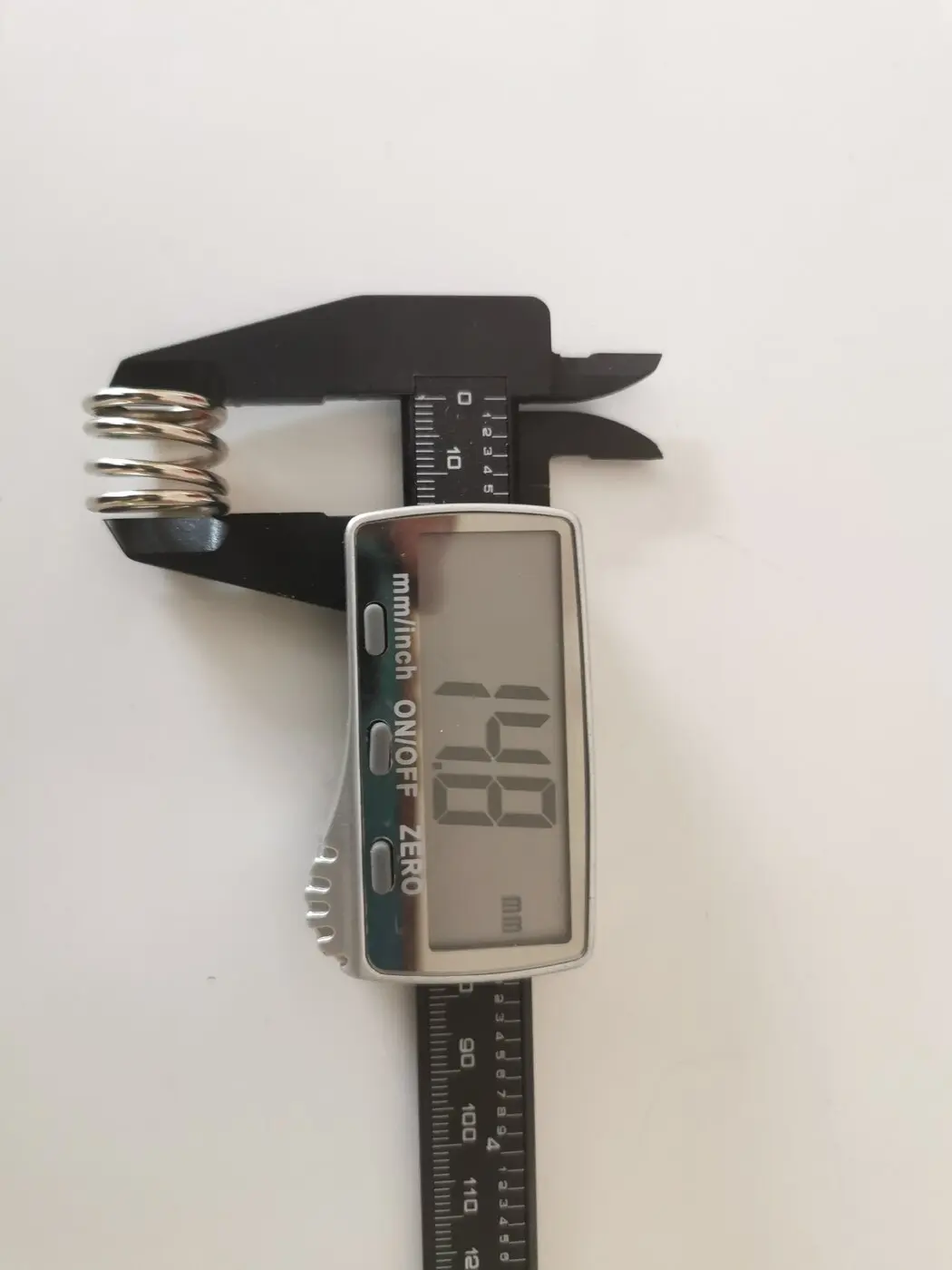

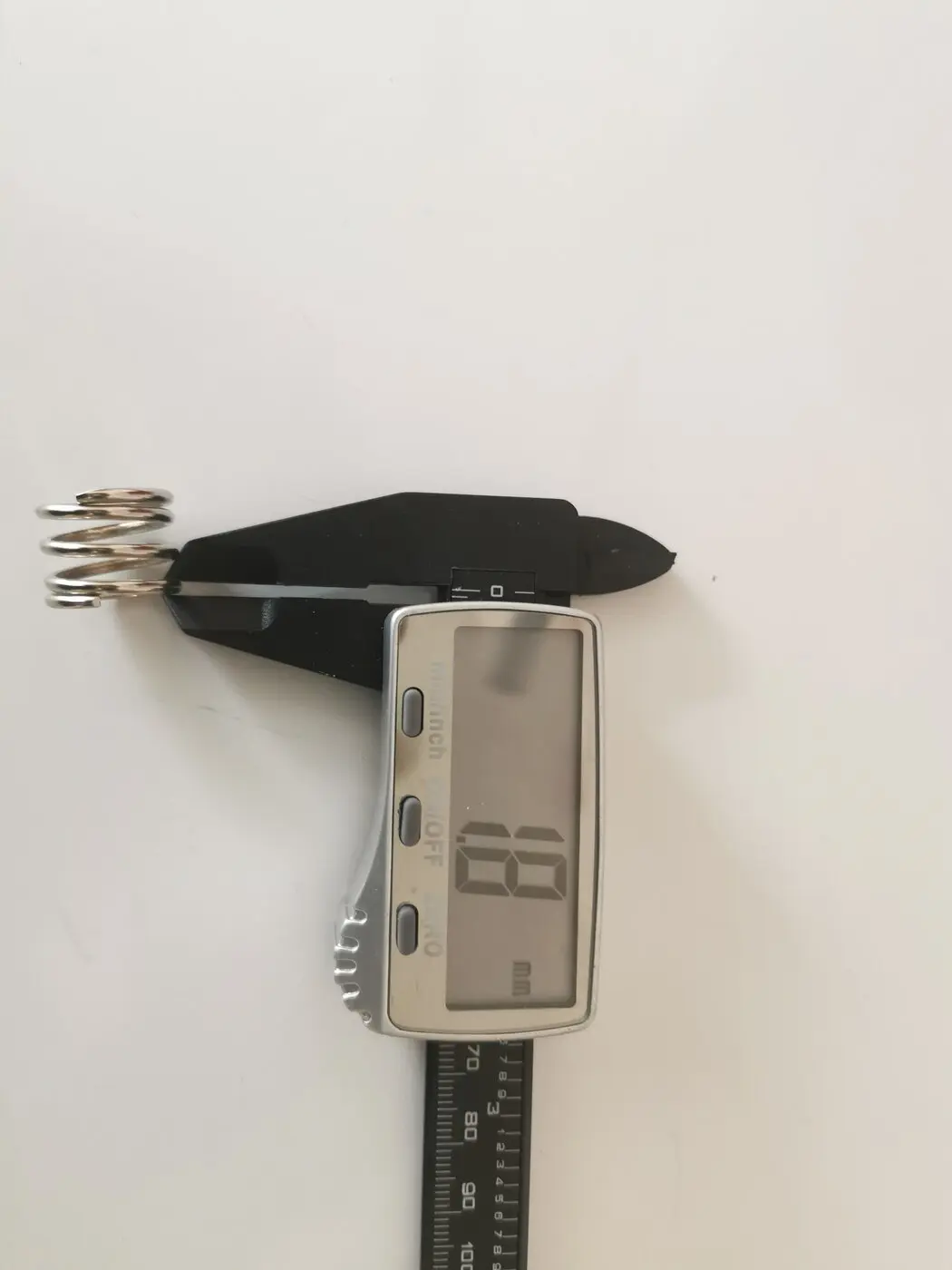

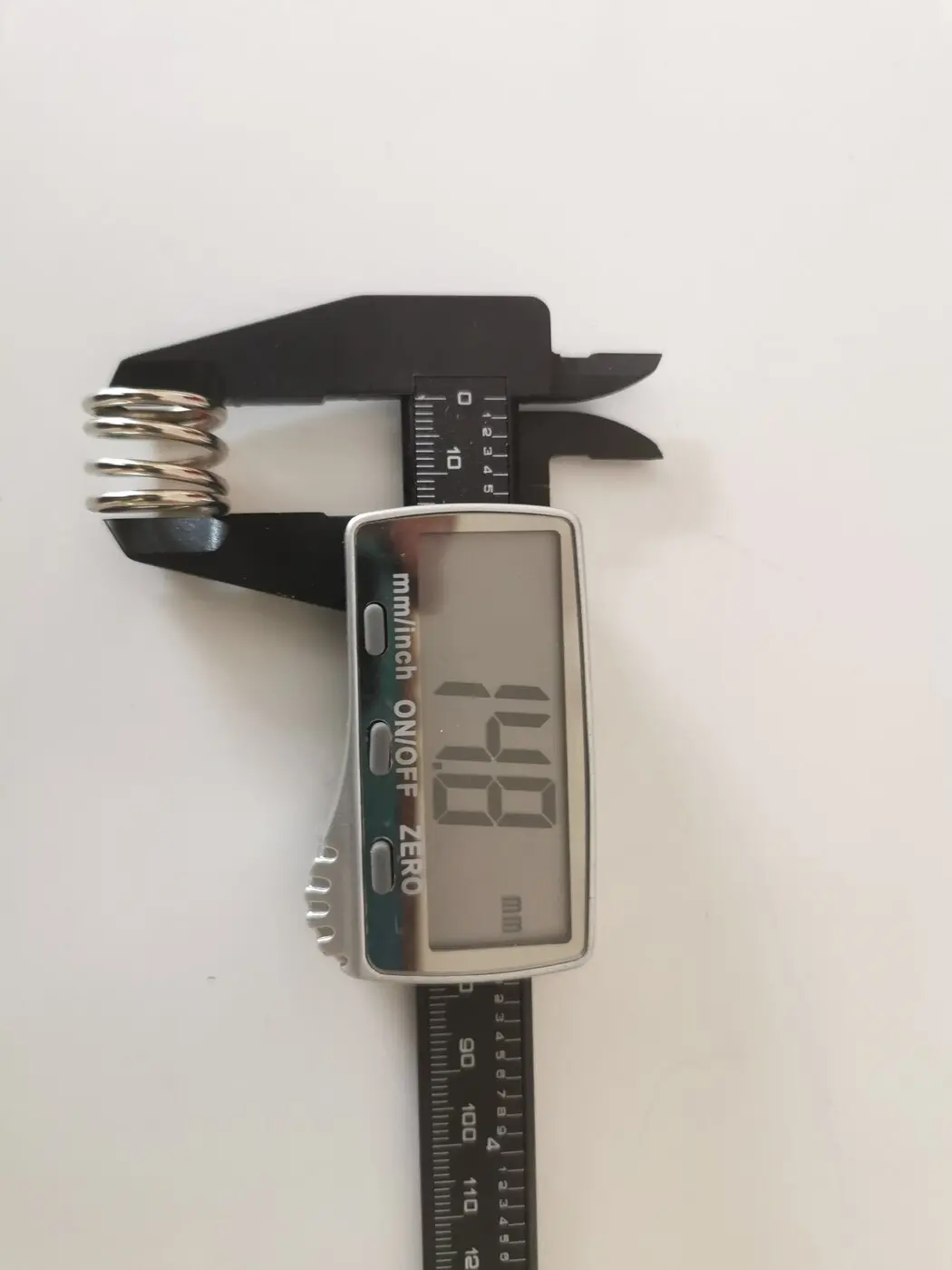

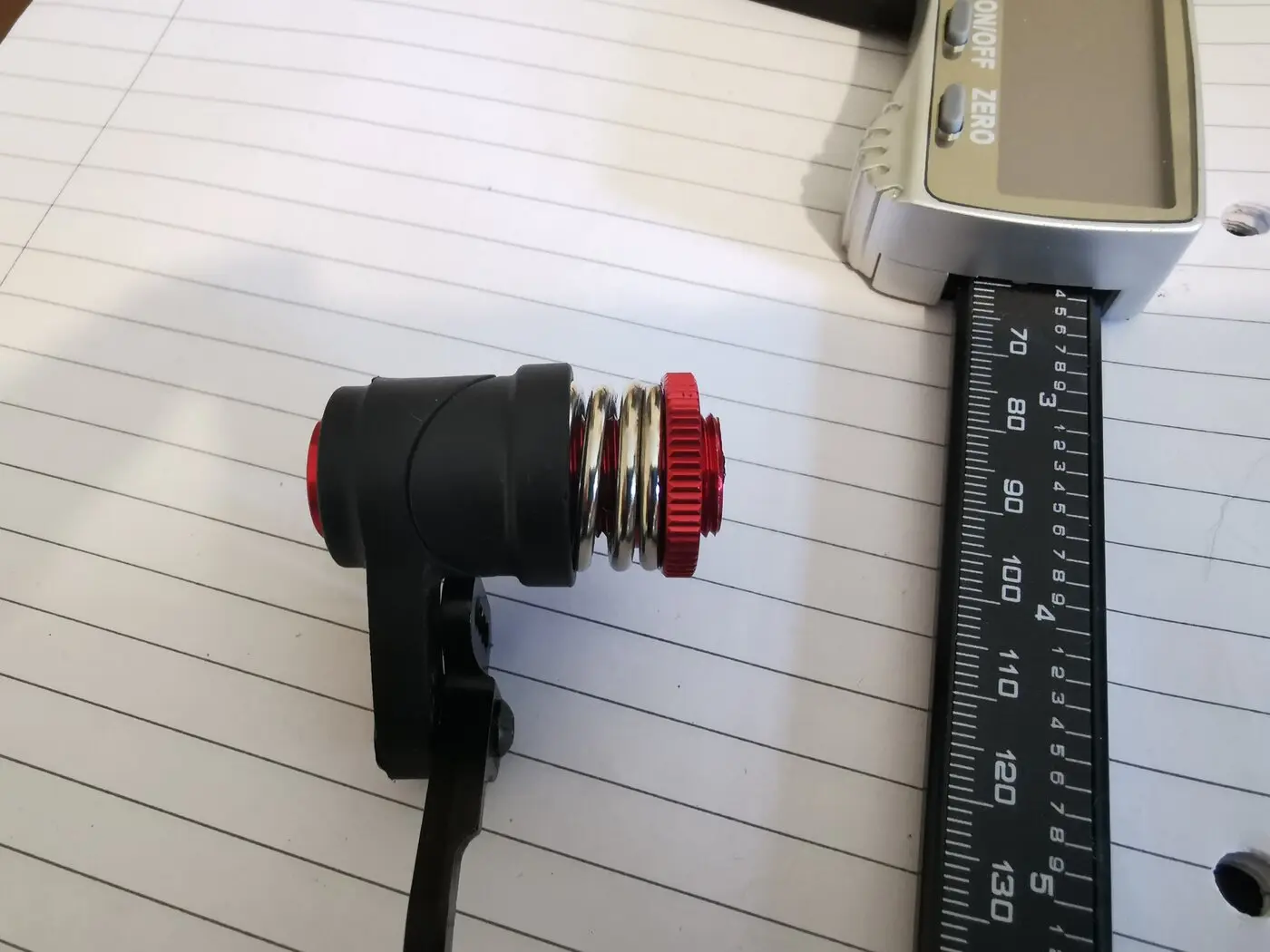

Now that we have that out of the way, here are the dimensions.
View attachment 2472View attachment 2473

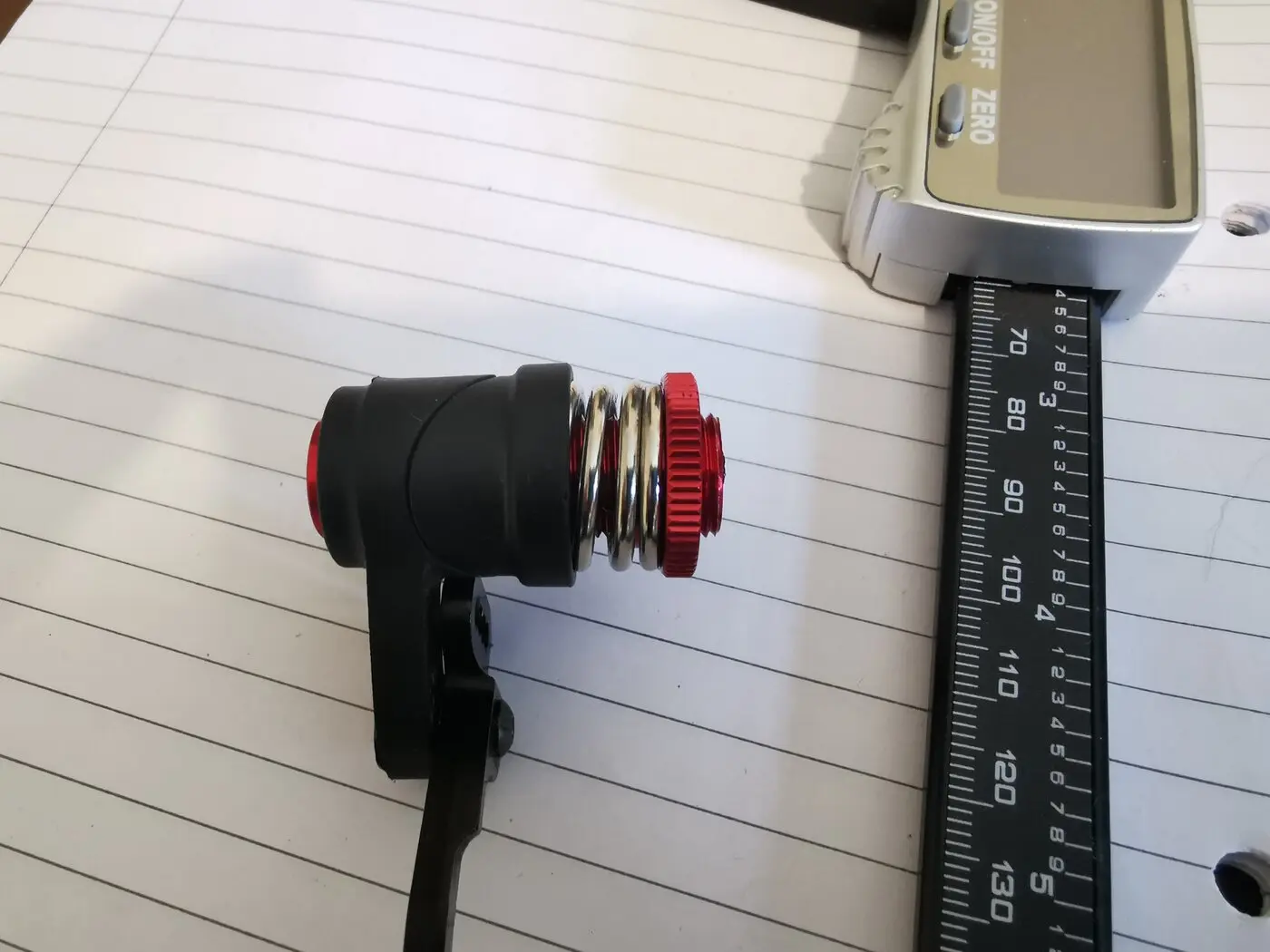

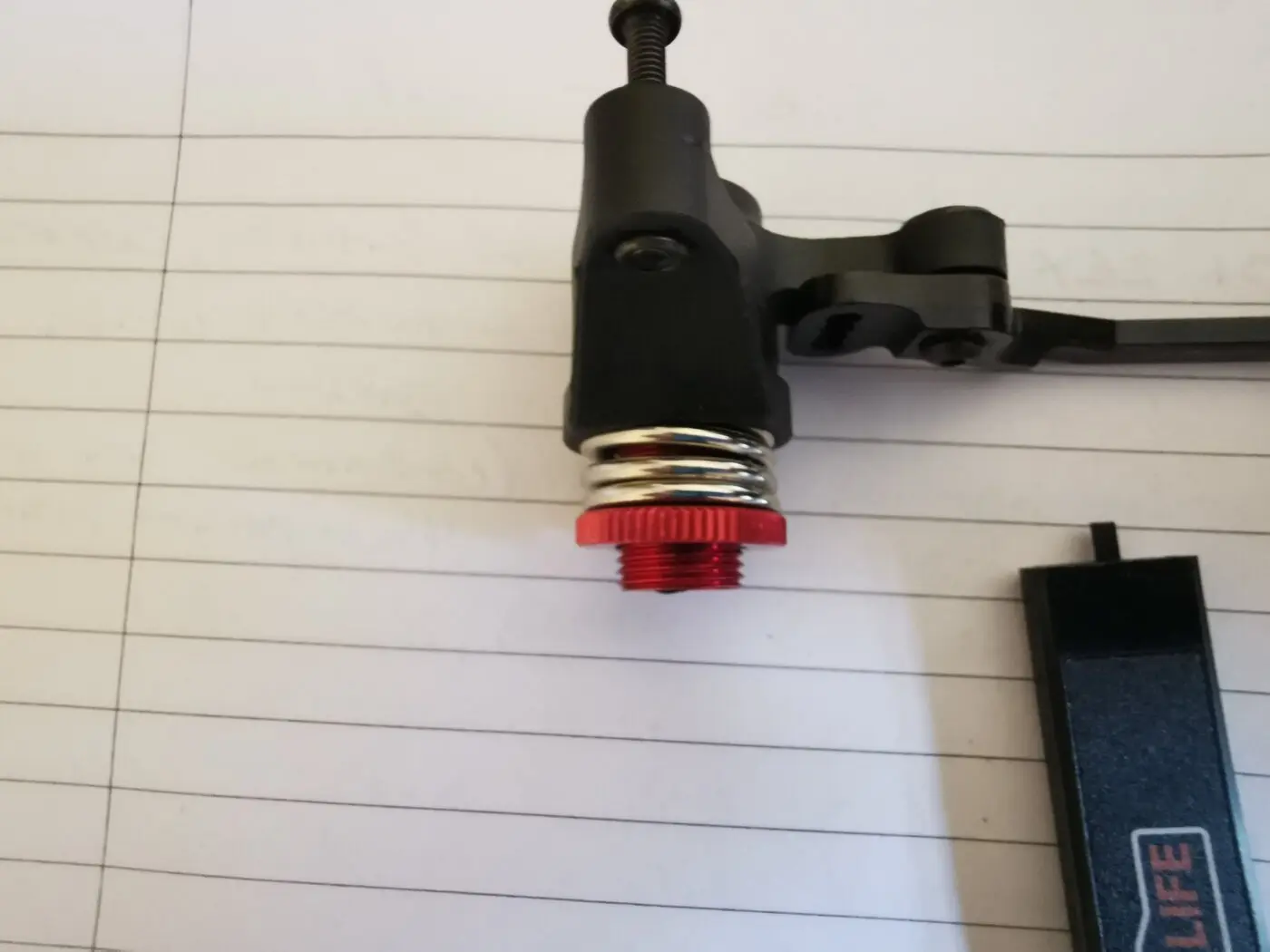

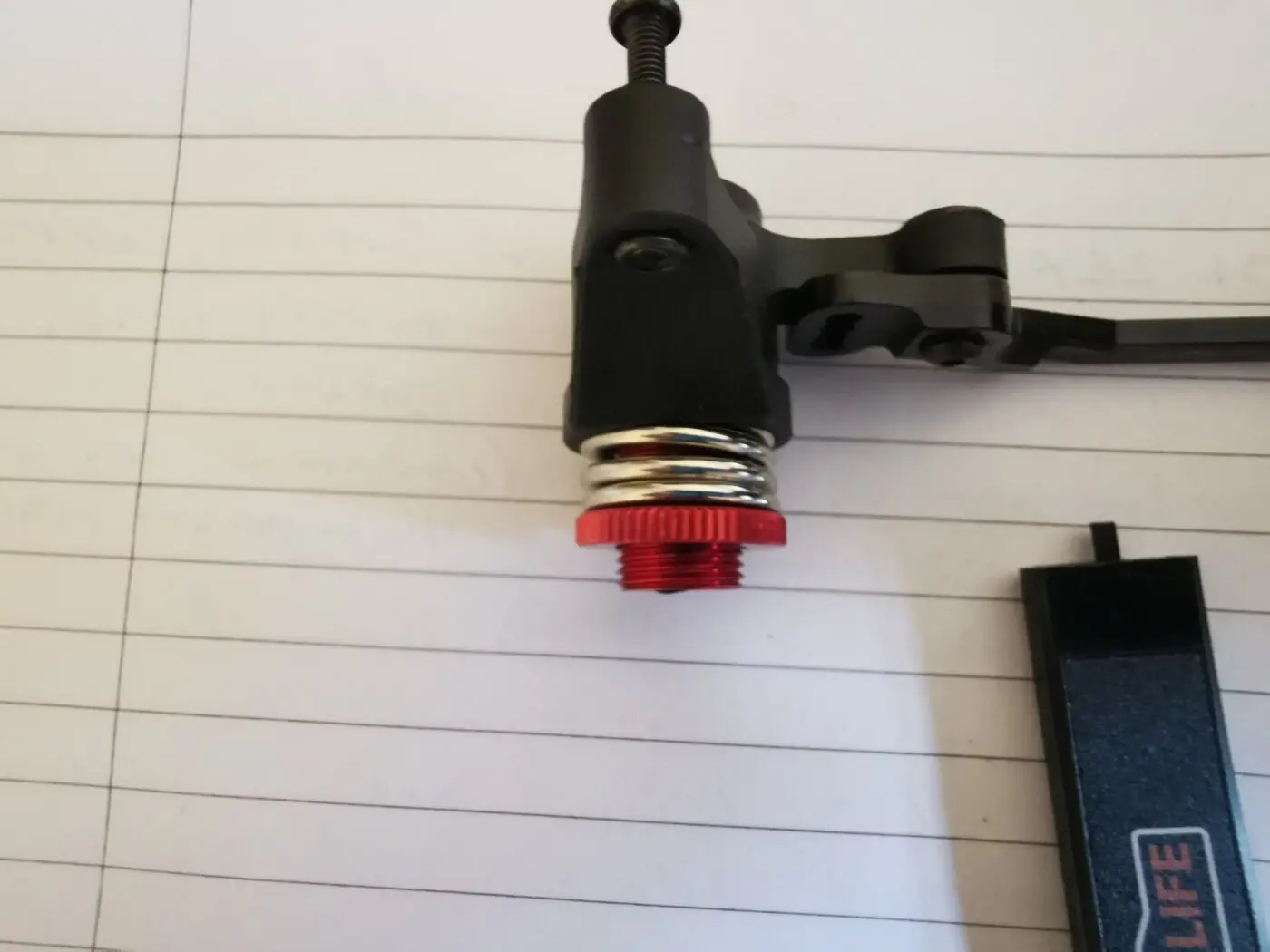

The servo saver started to feel vague when it looked like this:
View attachment 2474
Note the 2-3 visible threads at the end.
View attachment 2475

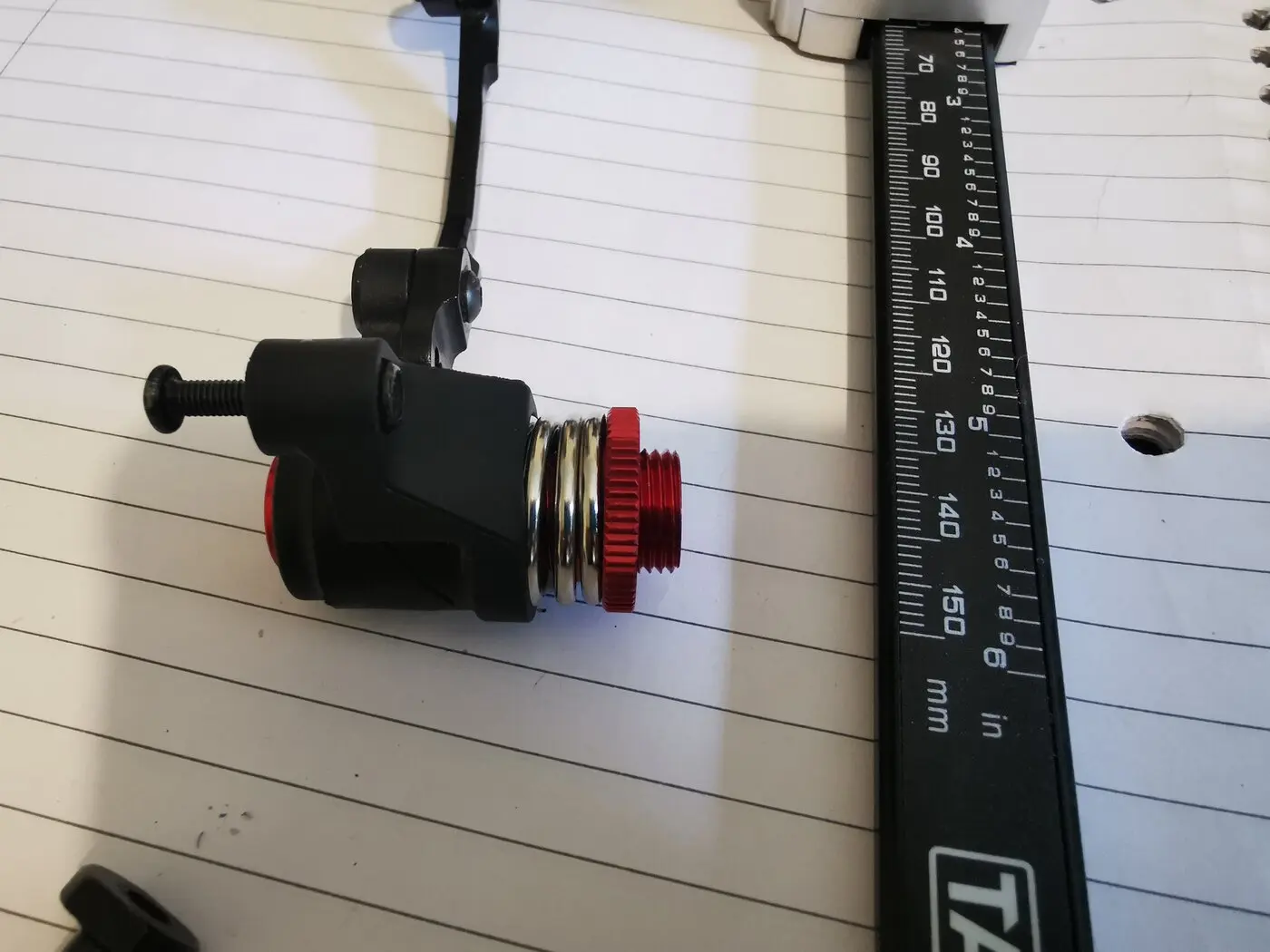

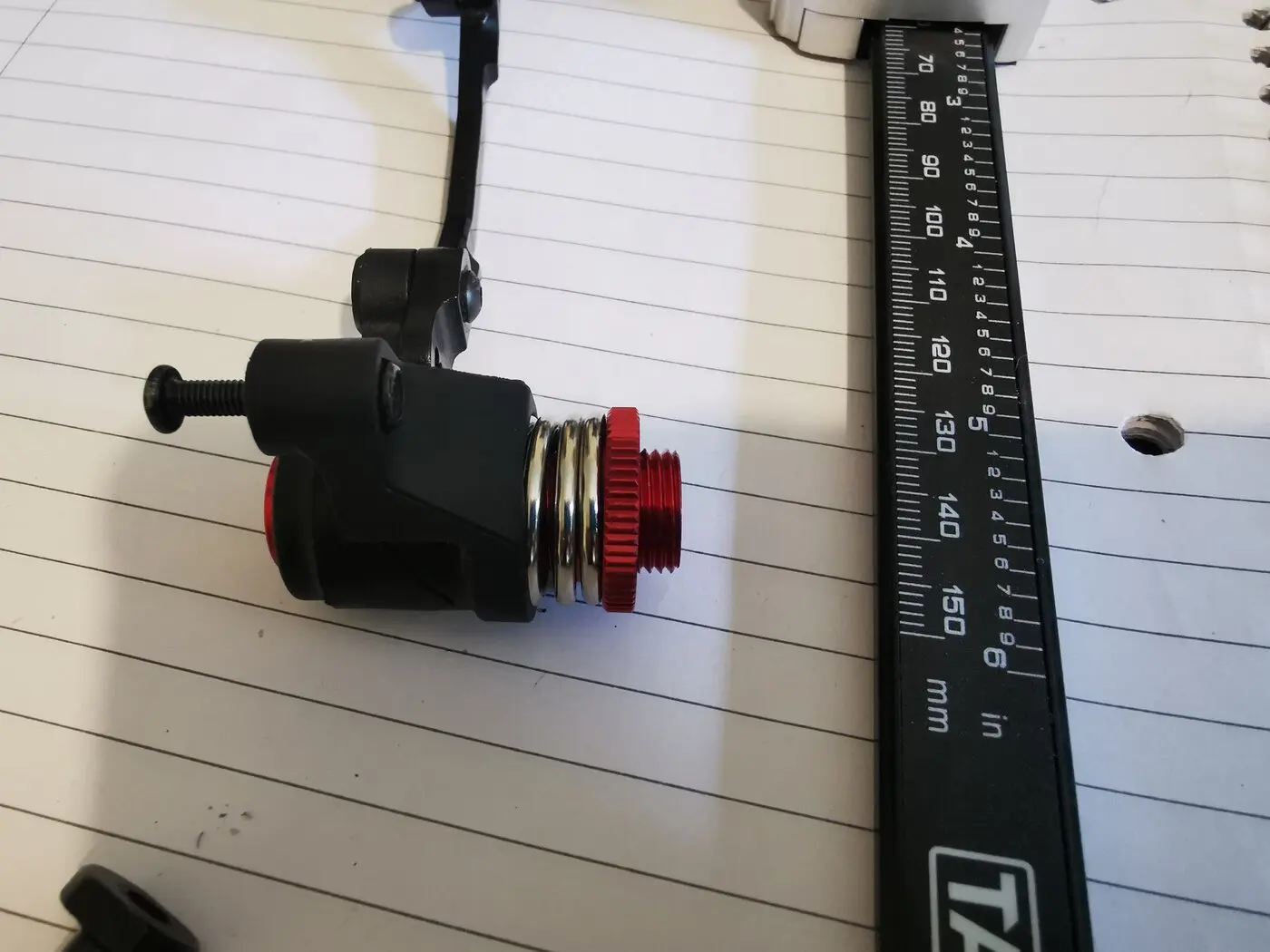

With 4 visible threads, the servo saver is much more positive, but there is very little Angular saving action between the coils.
View attachment 2476View attachment 2477

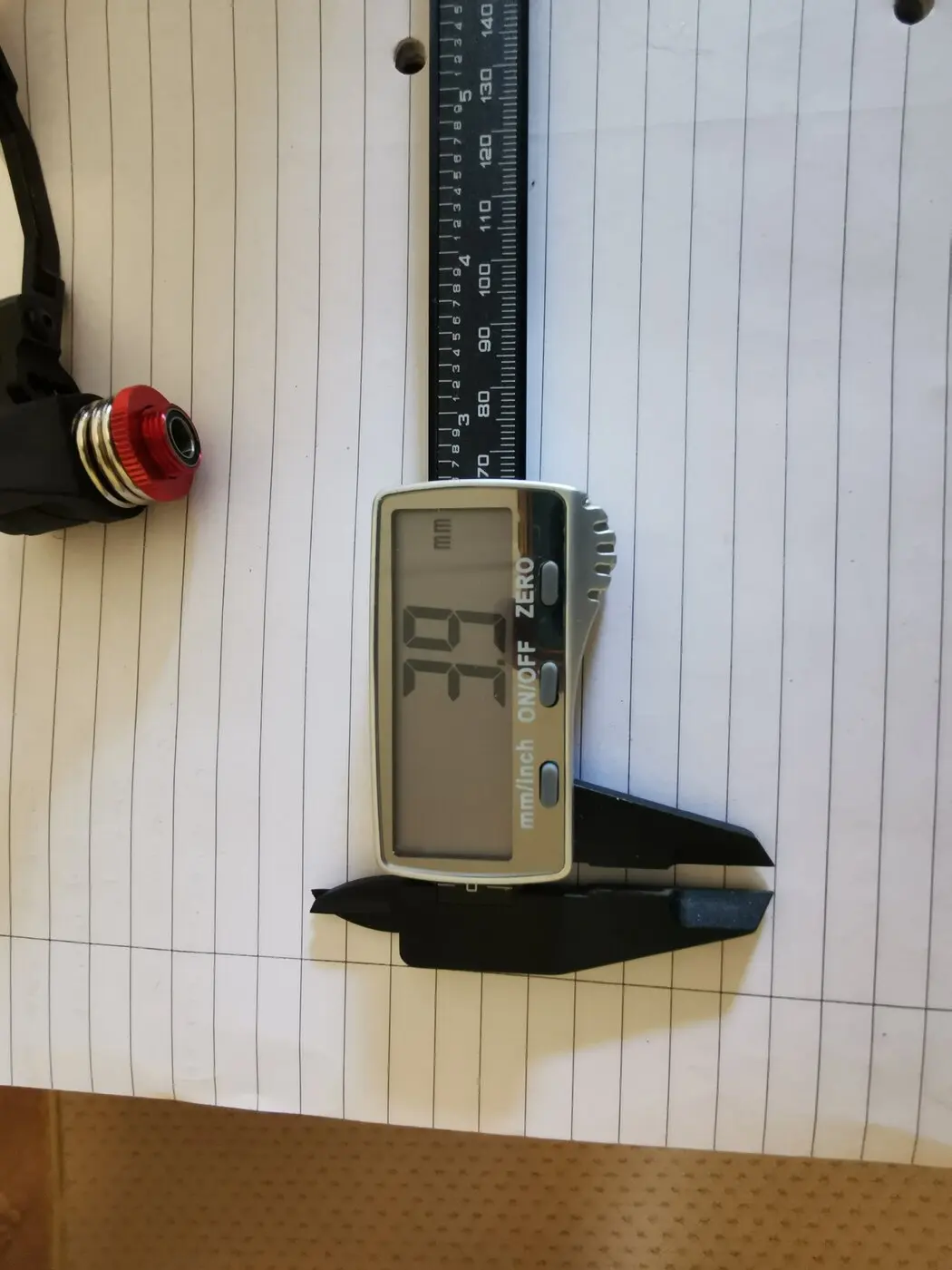

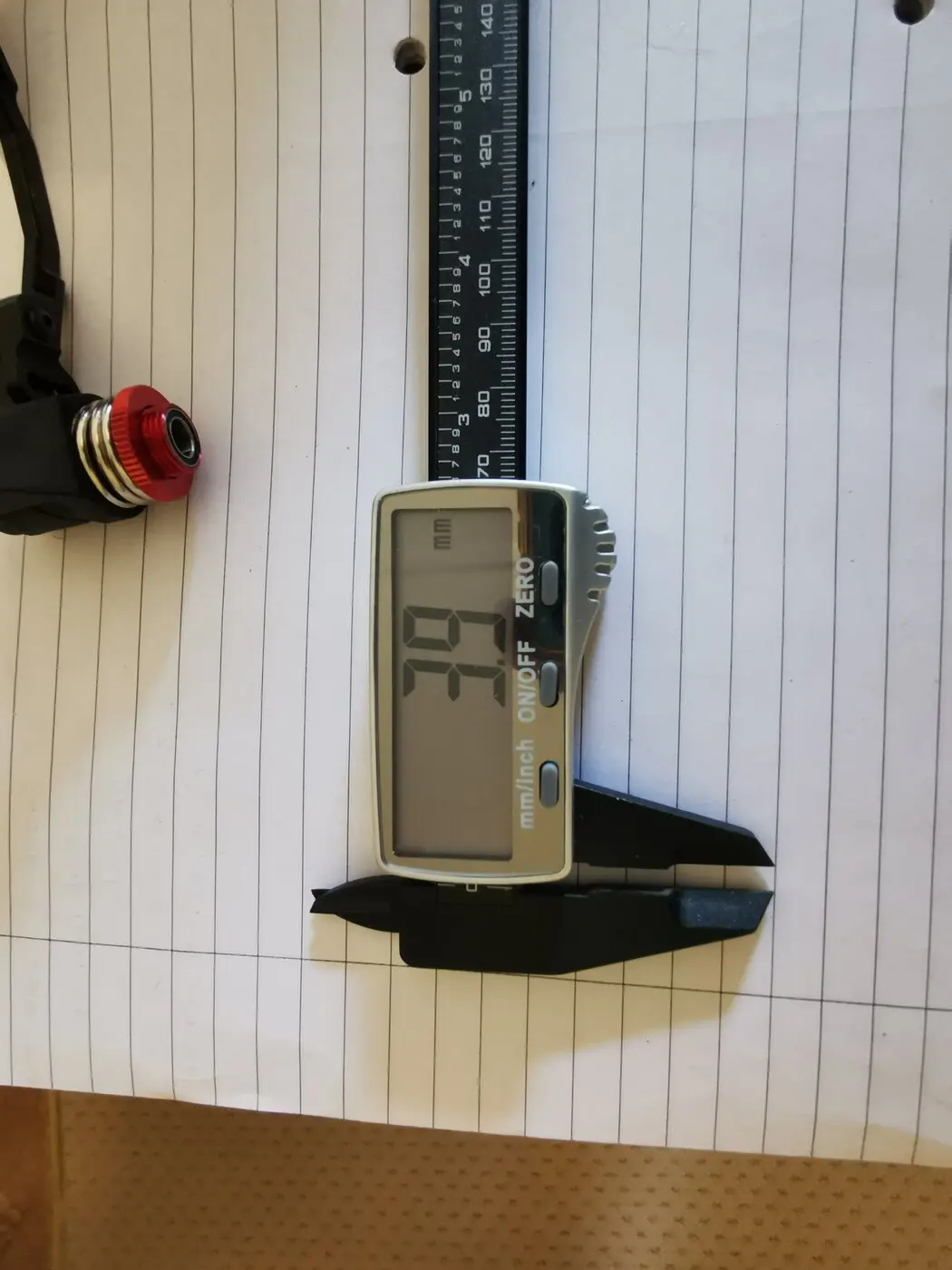

4 threads = 3.9mm when measured from the end of the threads to the collar.

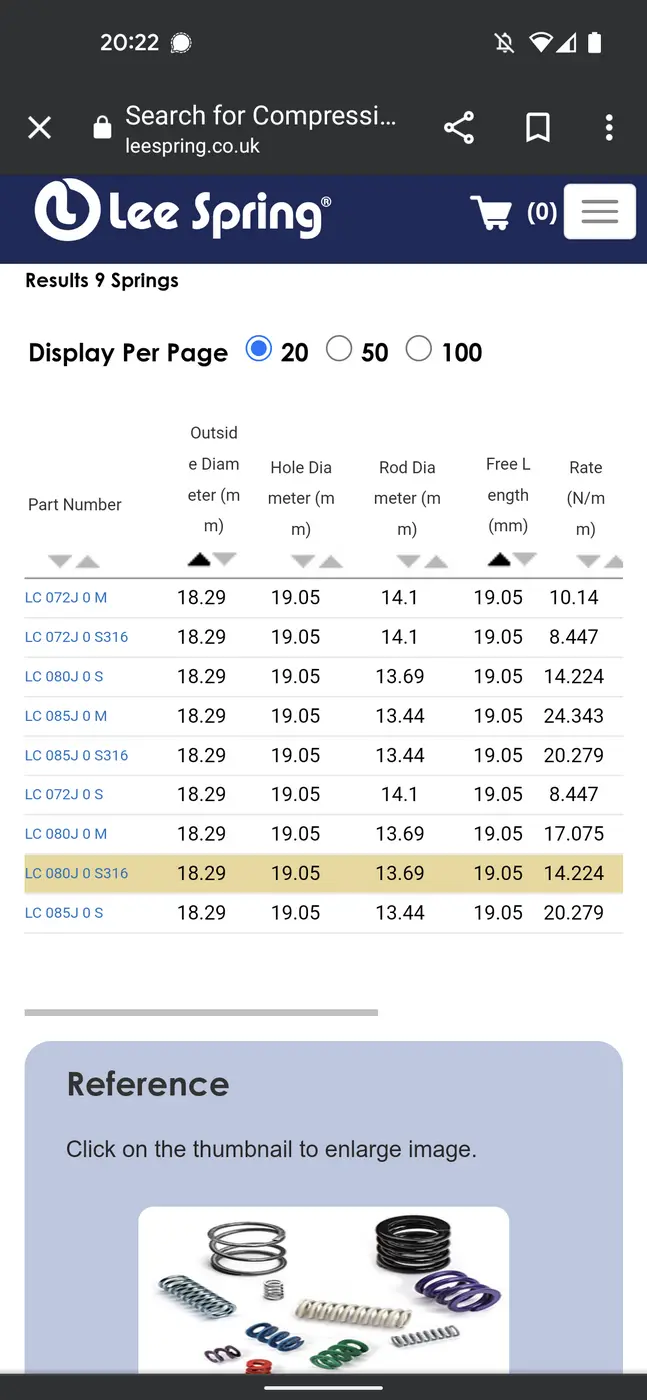

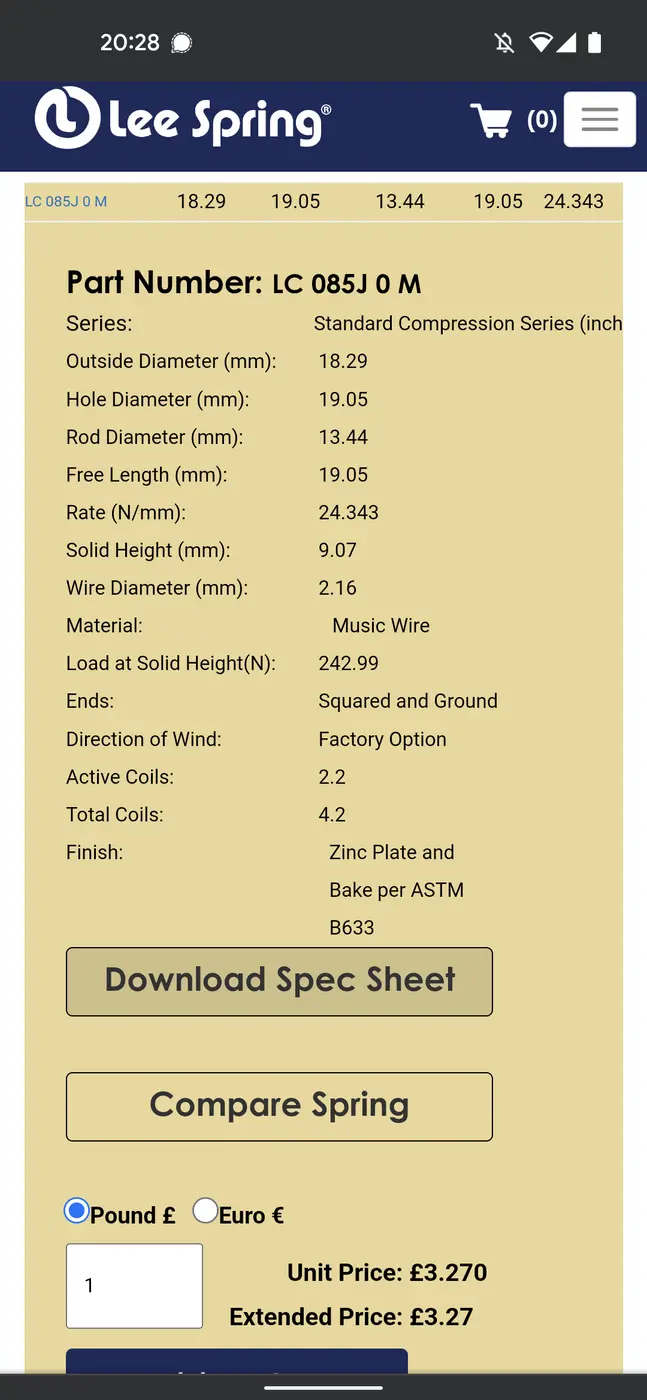

For now, this will have to do. But a beefier coil spring would be better, with less preload and more space for some saving action.
