  1. Asuga
  2. Jambo
  3. Kagama
  4. Kronos
  5. Kronos XTR
  6. Python
  7. Radix

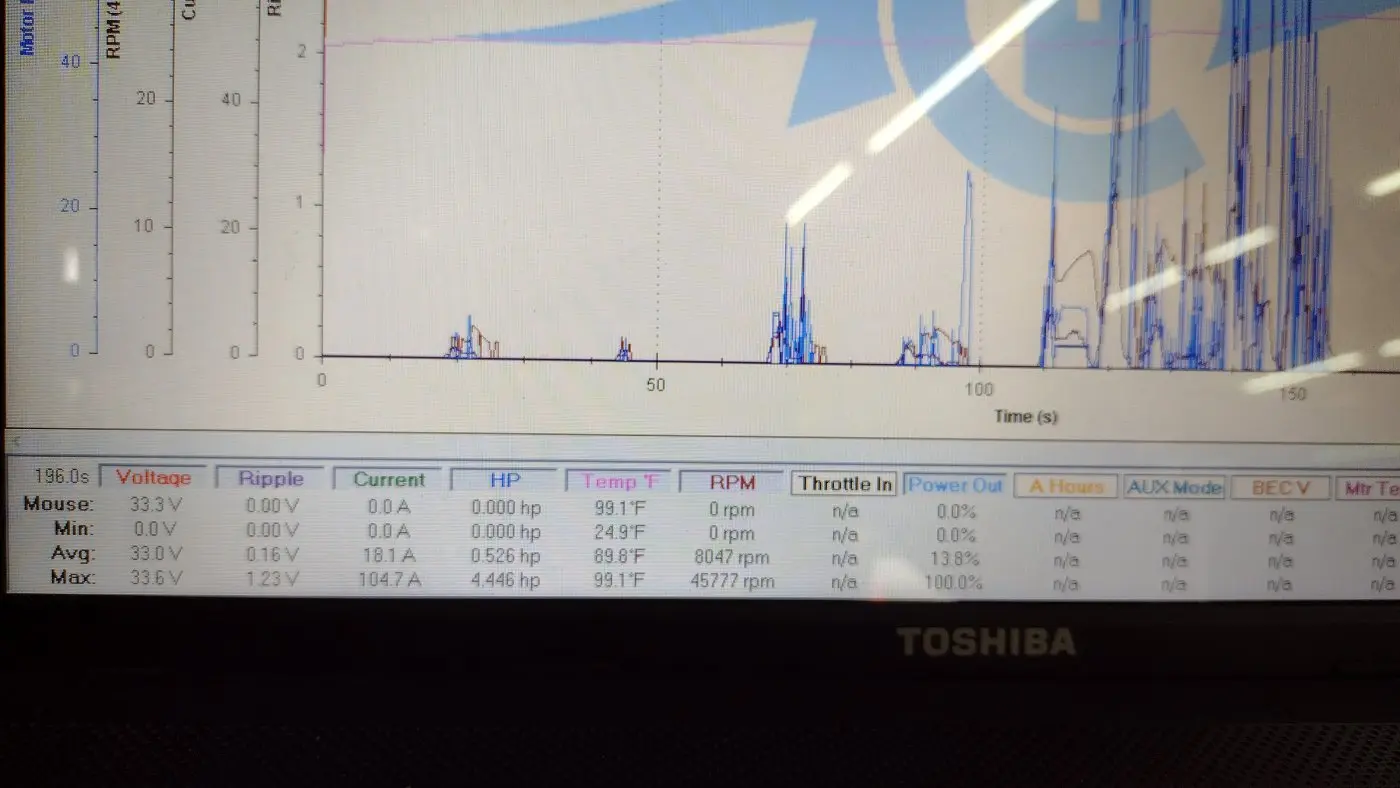

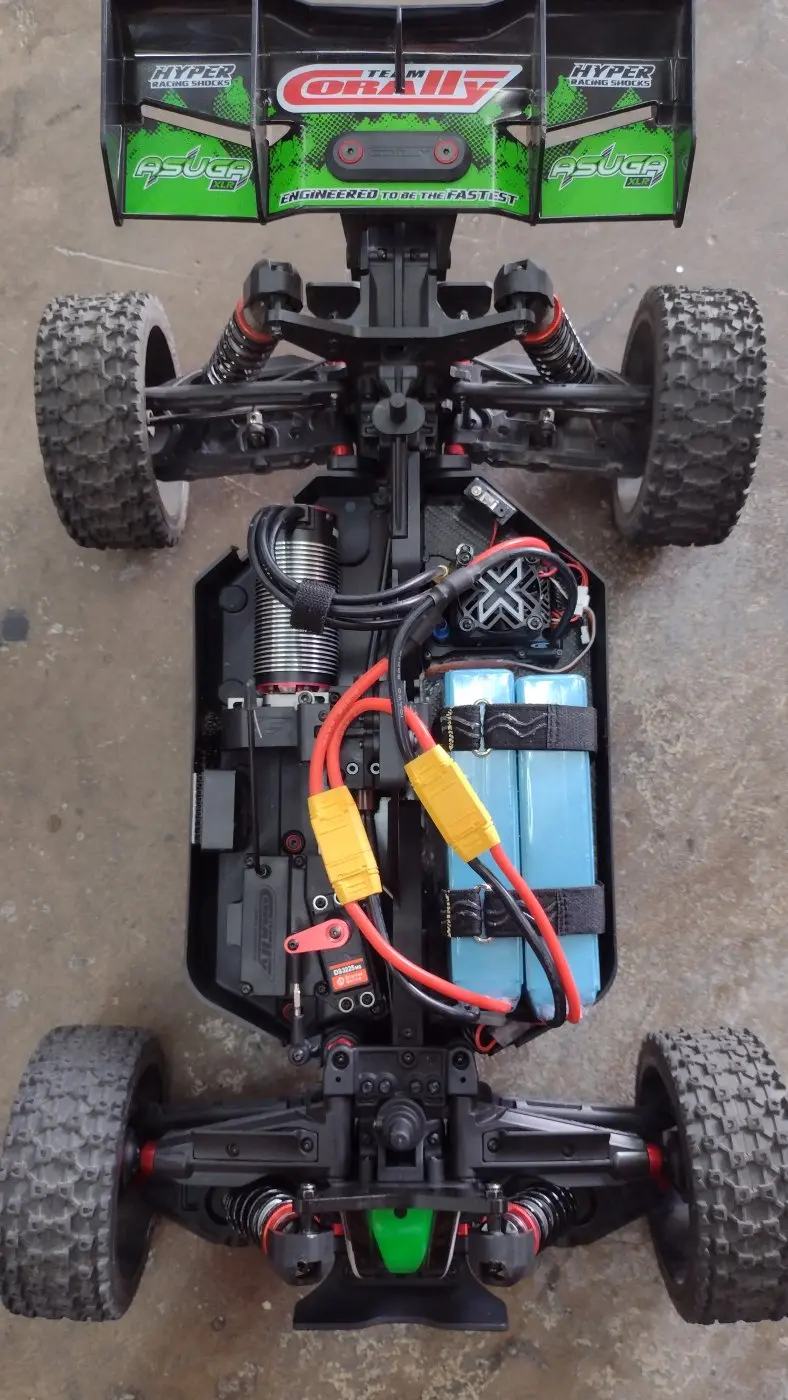

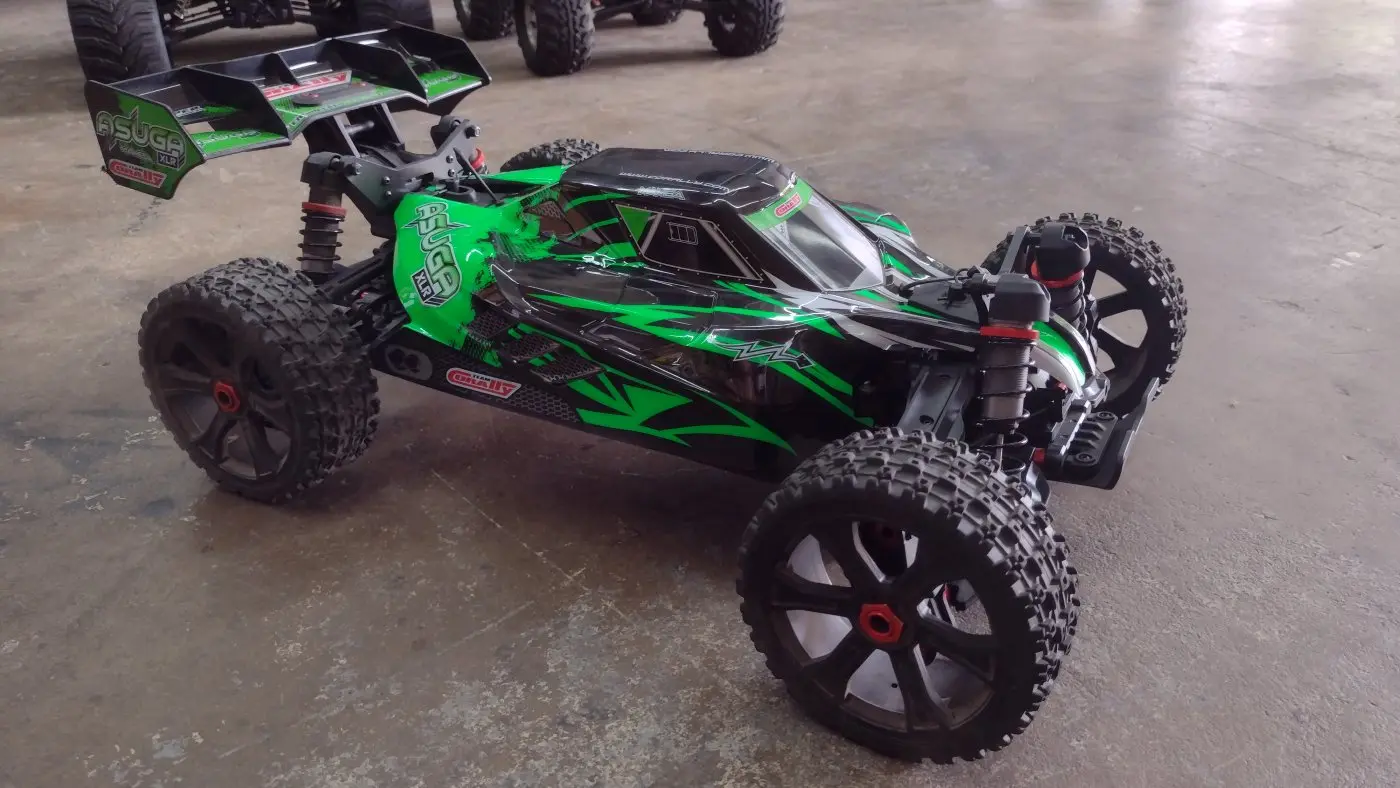

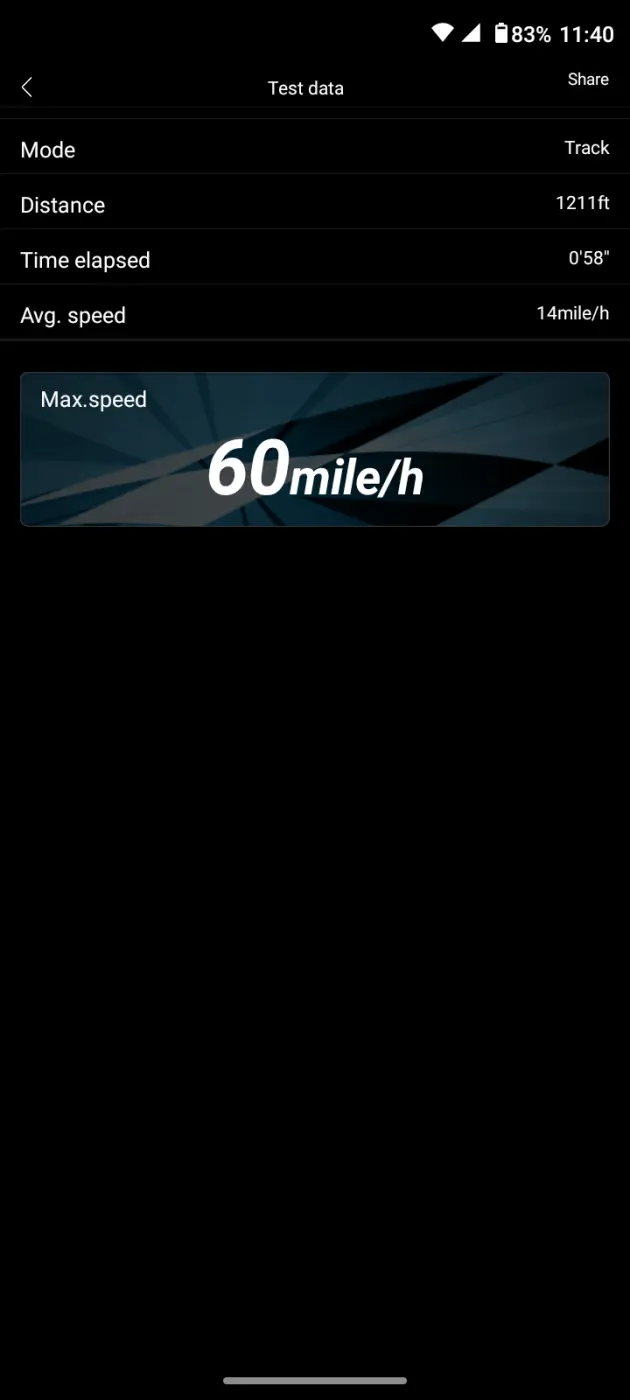

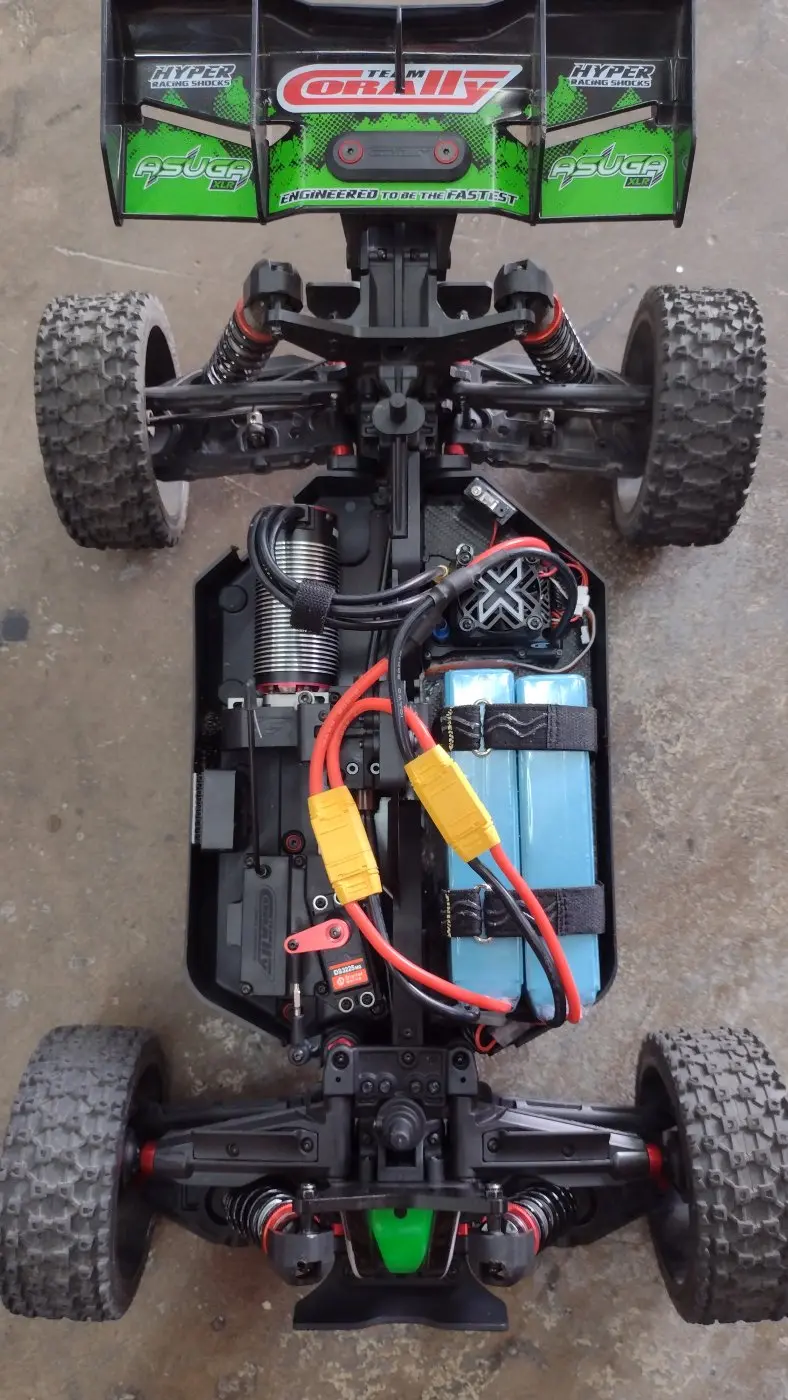

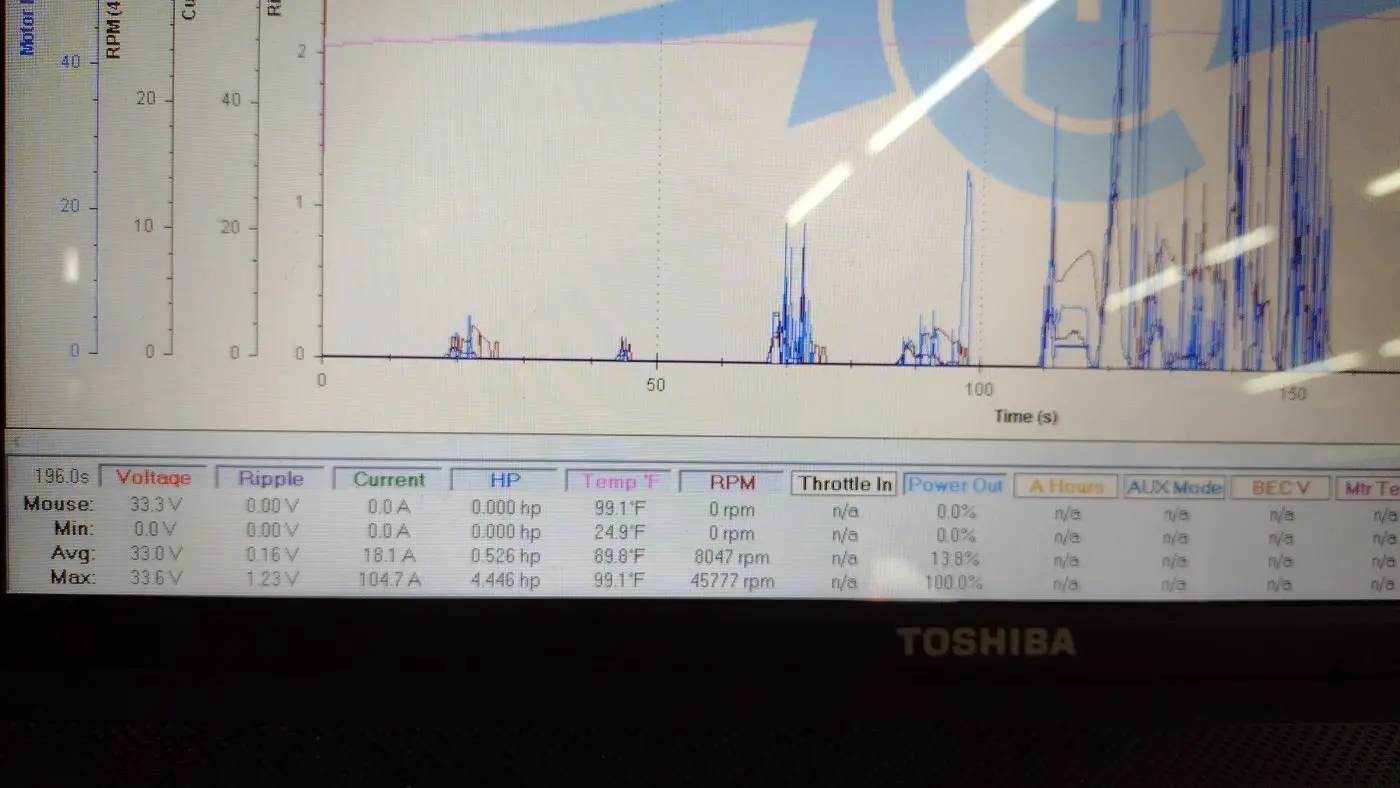

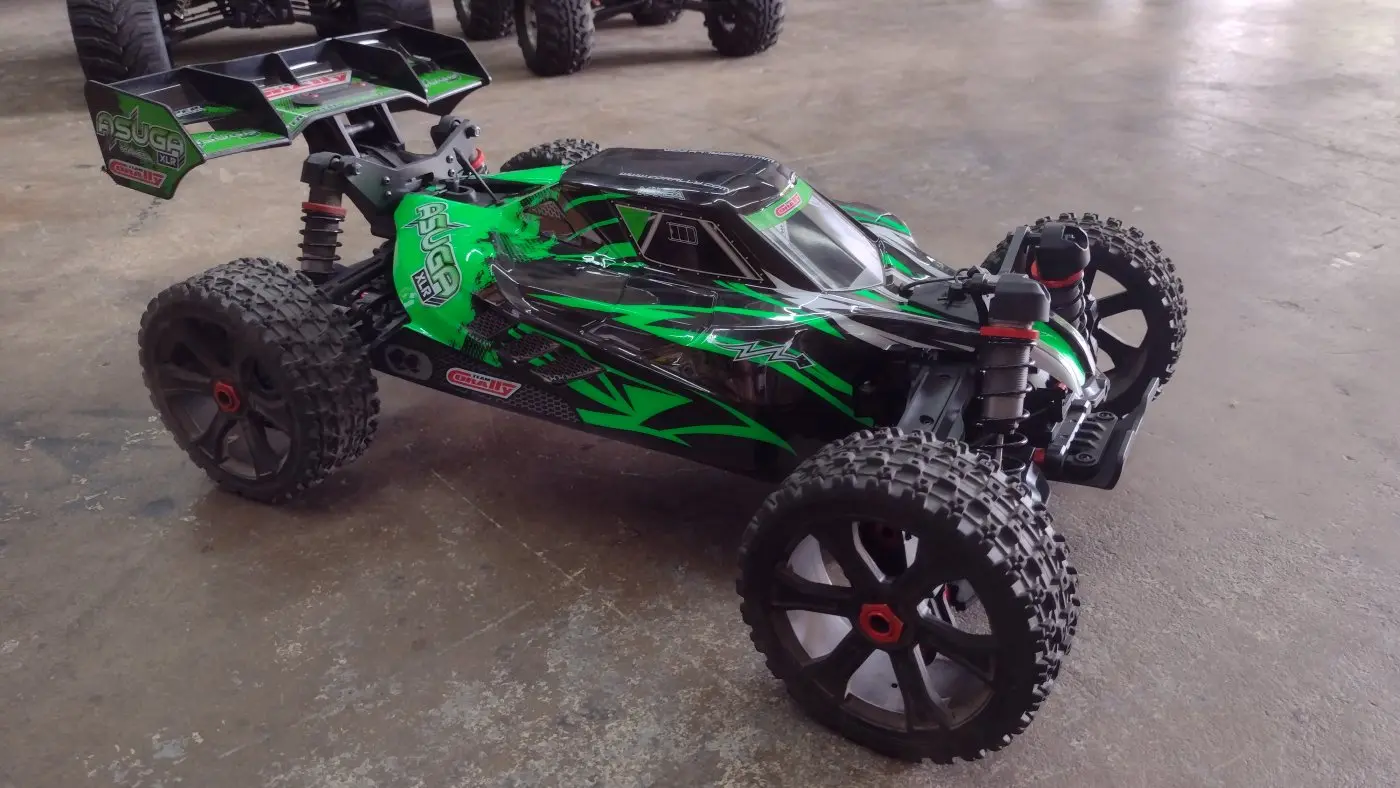

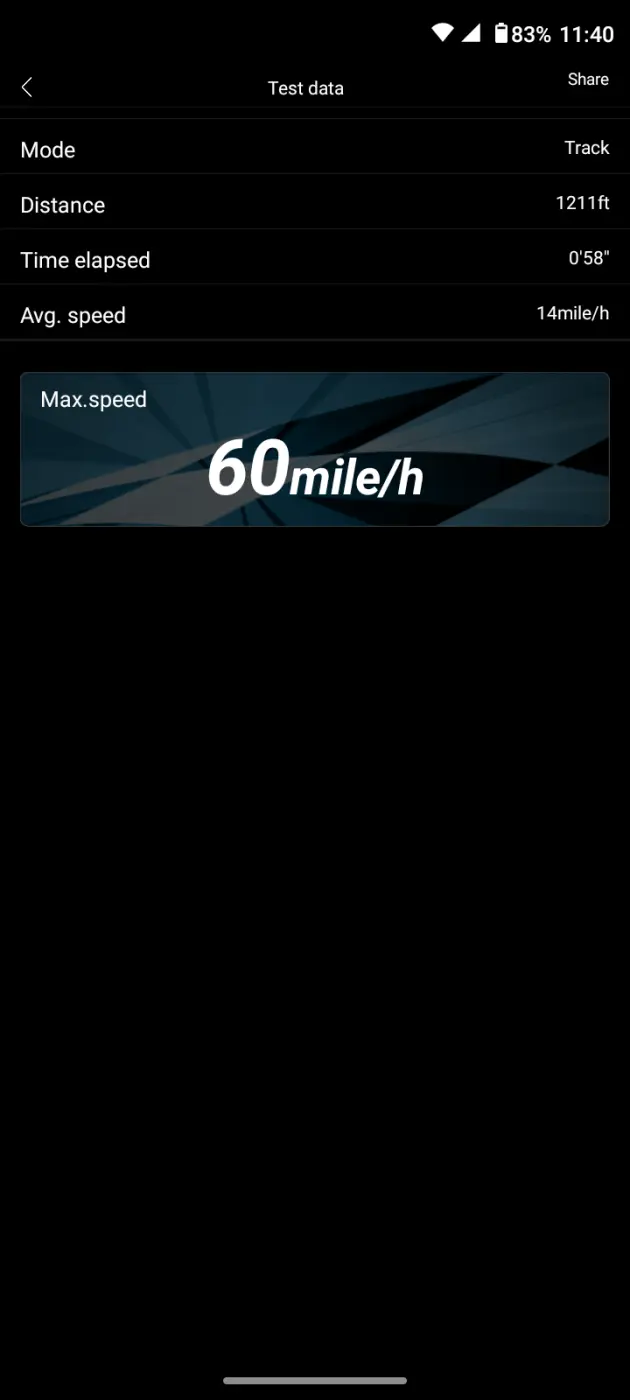

Finally got a chance to runs the asuga on 8s, castle mmx8s, rocket 1500kv, 17/52 gearing, top speed as expected considering on paper my gearing was for 63mph, logs look great, system pushes the car so easy, hardly using any amps being fairly light and turning smallish tires, car takes off like a bullet, lots of fun, the stock corally system I first put in the car was ok but this really feels like the sweet spot for my usage, reasonable top end with explosive acceleration.








BashingBrian said:
Looks good, but too much weight with 8s.. My 6s Radix (running on 4s) is faster 😉

What motor is that 4092.??
Click to expand...
Lol, yeah ya never know!!
Surprisingly it's not too heavy, the chassis in general weights more than an 1:8 obviously but fully loaded the asuga is at 12lb 9oz, my stock python with the exception of the wide arms is 9lbs 12oz. And yeah 4092, well it's labeled 4292 but that's cause the fins

KnowAir said:
Looks great!! Not having to rely on motor fans is always a big plus IMO. I'm sure it's got waay more in it if you decide to gear up. Nice buggy😎👌
Click to expand...
Yeah heat has never been an issue with these systems on my rigs, this and the radix both run ice cold, heck even when I had this system in the kronos prior to the asuga it never got hot and in that truck it was religiously pulling 300-350 amps (9000+ watts-10+hp) stayed cool enough to have zero thought of adding any fans

AngrySection8 said:
Yeah heat has never been an issue with these systems on my rigs, this and the radix both run ice cold, heck even when I had this system in the kronos prior to the asuga it never got hot and in that truck it was religiously pulling 300-350 amps (9000+ watts-10+hp) stayed cool enough to have zero thought of adding any fans
Click to expand...
Guessing you had to modify the battery tray?

KnowAir said:
Guessing you had to modify the battery tray?
Click to expand...
Yes, on this car I actually did away with it all together, I cut a piece of kydex to match the left side of chassis and dual locked it to the floor as well as a handful of screws, the the batteries are obviously held down with the straps but they are also dual locked to the new tray to keep from sliding forward and backward

AngrySection8 said:
Finally got a chance to runs the asuga on 8s, castle mmx8s, rocket 1500kv, 17/52 gearing, top speed as expected considering on paper my gearing was for 63mph, logs look great, system pushes the car so easy, hardly using any amps being fairly light and turning smallish tires, car takes off like a bullet, lots of fun, the stock corally system I first put in the car was ok but this really feels like the sweet spot for my usage, reasonable top end with explosive acceleration.

View attachment 4141

View attachment 4142

View attachment 4143

View attachment 4144
Click to expand...
The castle electronics are the best made. Bar none. That's also the difference between corally electronics and castle.

Wallys Rc World said:
The castle electronics are the best made. Bar none. That's also the difference between corally electronics and castle.
Click to expand...
I am running the standard setup on my Python and my problem is keeping the front end down. I have changed the angle of the rear spoiler this didn’t help. If I use an 11T or go up the a 15T as soon as I give it the beans the front wheels lift up. Ian running 6S and have Badlands fitted for grip. The supplied tyres are rubbish off road. I don’t want to add weight to the front.

chipster said:
I am running the standard setup on my Python and my problem is keeping the front end down. I have changed the angle of the rear spoiler this didn’t help. If I use an 11T or go up the a 15T as soon as I give it the beans the front wheels lift up. Ian running 6S and have Badlands fitted for grip. The supplied tyres are rubbish off road. I don’t want to add weight to the front.
Click to expand...
I'd try thinner center diff fluid to prevent the wheelies. What's in it now? Stock is 100k I think? Too thin will cause it to "diff out" , sending too much power to the front wheels..gotta find a happy medium between wheel stands and blowing the front tires off.

KnowAir said:
I'd try thinner center diff fluid to prevent the wheelies. What's in it now? Stock is 100k I think? Too thin will cause it to "diff out" , sending too much power to the front wheels..gotta find a happy medium between wheel stands and blowing the front tires off.
Click to expand...
Hi. 20,000 front, 200,000 centre and 10’000 in the rear. So I think maybe a little thicker in the front May help

chipster said:
Hi. 20,000 front, 200,000 centre and 10’000 in the rear. So I think maybe a little thicker in the front May help
Click to expand...
Center diff is where you'll see a difference if it's wheel standing too much. Bigger tires will exaggerate the problem, such as 2.8 badlands.

Try 100k is my guess, but might even need to go thinner.

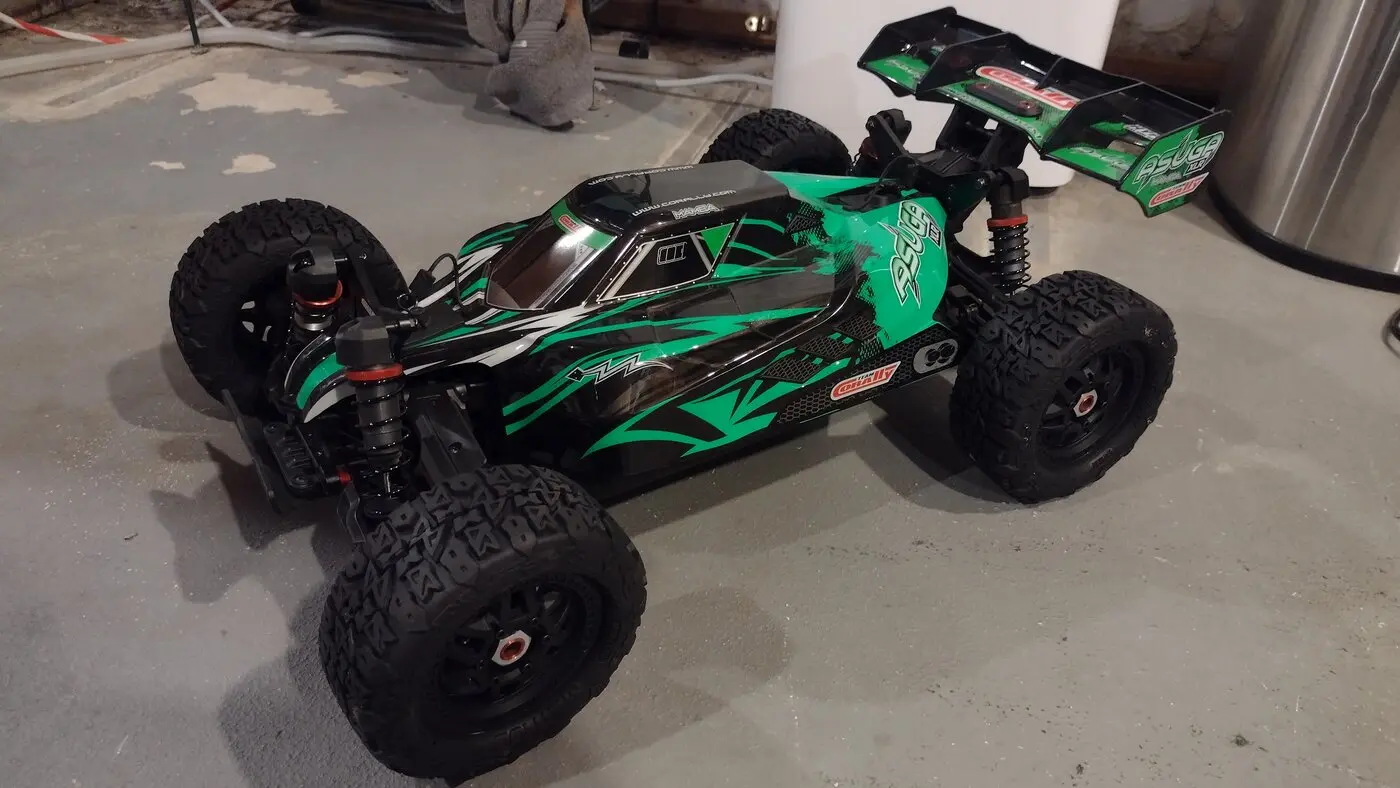

Method tires showed up so tossed them on quick, look good, didn't feel any dragging so assume they clear everything but I was in the cellar so didn't have a light handy to look inside the wheels to see for sure


The Stig said:
Or lower the punch. With the program card.
Click to expand...
I have the punch on 4, even when doing 30mph it still wheelies whe I accelerate on grass. The Mach 10’s are grippy not like the stock ones that just spin. Not very good on grass. They are more of a road tyre.

KnowAir said:
Or throttle control...LOL
Click to expand...
Yeah, I’m a bit like Clarkson , power!! Without thinking what will happen. It won’t wheelie on the stock tyres, they are rubbish. Knowing what I know now I would have bought the Radix, it has a more suitable tyre but £20 for a set just to bash about with is fine. They have lasted longer than the Badlands. Has anyone tried Louise tyres.

Last edited:
AngrySection8 said:
Yes, on this car I actually did away with it all together, I cut a piece of kydex to match the left side of chassis and dual locked it to the floor as well as a handful of screws, the the batteries are obviously held down with the straps but they are also dual locked to the new tray to keep from sliding forward and backward
Click to expand...
Any chance you can show what you did the battery tray? I think the battery tray that the Spark and Asuga comes with it not good. Both broke for me.

ClickClack said:
Any chance you can show what you did the battery tray? I think the battery tray that the Spark and Asuga comes with it not good. Both broke for me.
Click to expand...

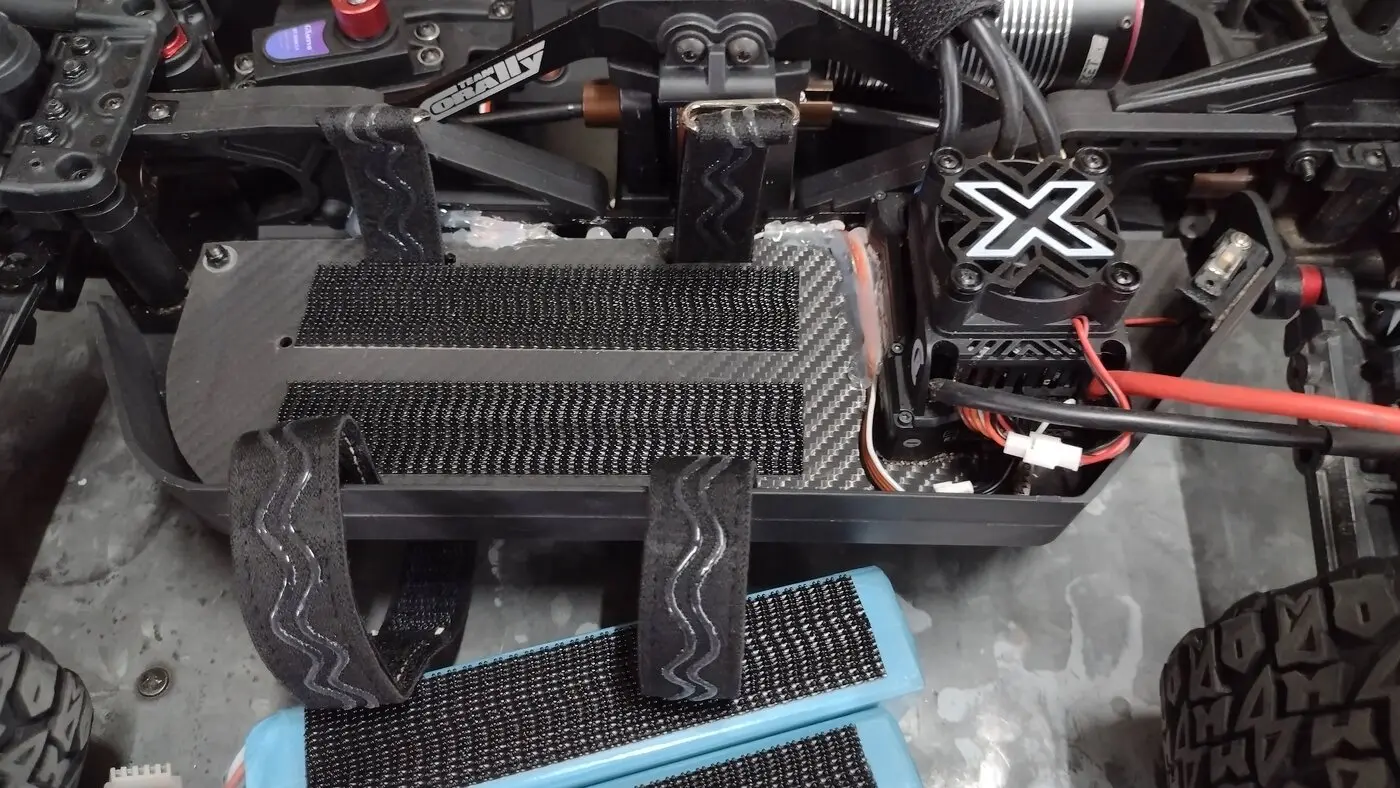

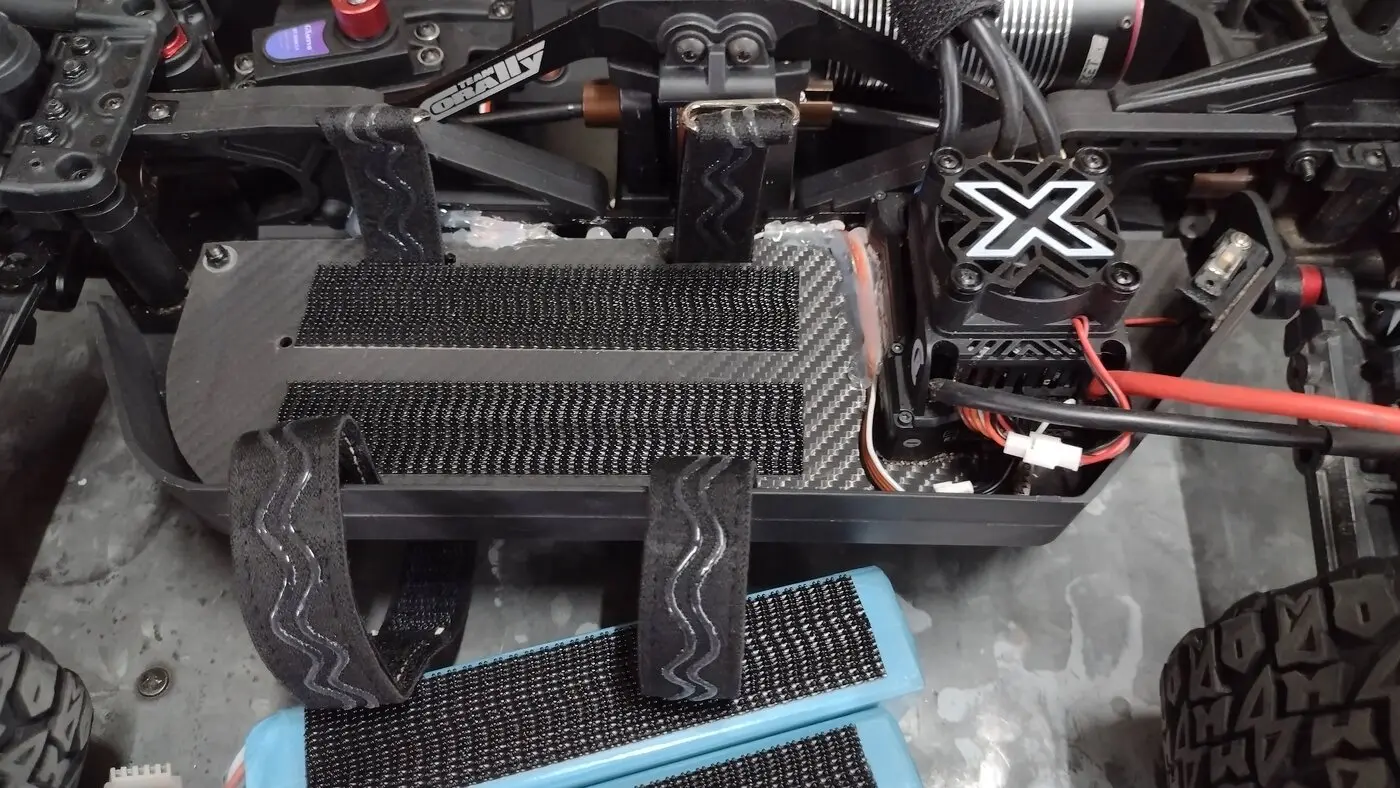

Here ya go, may or may not work for everyone, I don't jump my asuga although I do feel this tray is more than strong enough to take it, can't recall how many screws I have holding it forgot to look but I'm guessing 4 then it's dual locked down everywhere possible, kevlar straps holding batteries down and also dual lock to keep them from sliding forward/backwards


AngrySection8 said:
Here ya go, may or may not work for everyone, I don't jump my asuga although I do feel this tray is more than strong enough to take it, can't recall how many screws I have holding it forgot to look but I'm guessing 4 then it's dual locked down everywhere possible, kevlar straps holding batteries down and also dual lock to keep them from sliding forward/backwards

View attachment 4781
Click to expand...
Thank you.

I’m going to try to do something like this. The stock battery tray is garbage. Weak.
