What bodies will fit the Sketer?

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, and others.
project_revenant

project_revenant

Well-known member
Messages
134
Reaction score
237
Location
South West Missouri
Corally RC's
  1. Sketer
I know it may be a little too soon to tell but I’d really like to find a different body for the Sketer. Not a huge fan of the “toy car” look. I’d like to find something a little more realish looking if there is such a word.

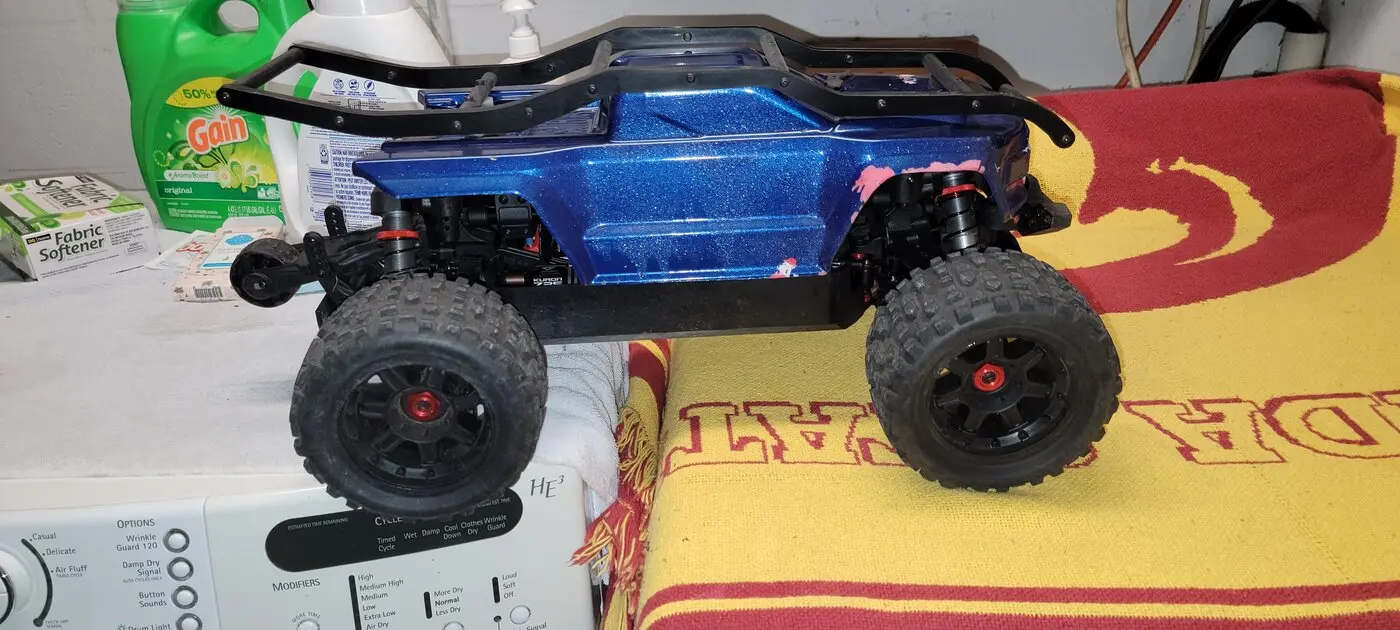

Kraton 4s has potential with body mount changes.




svenvisser said:

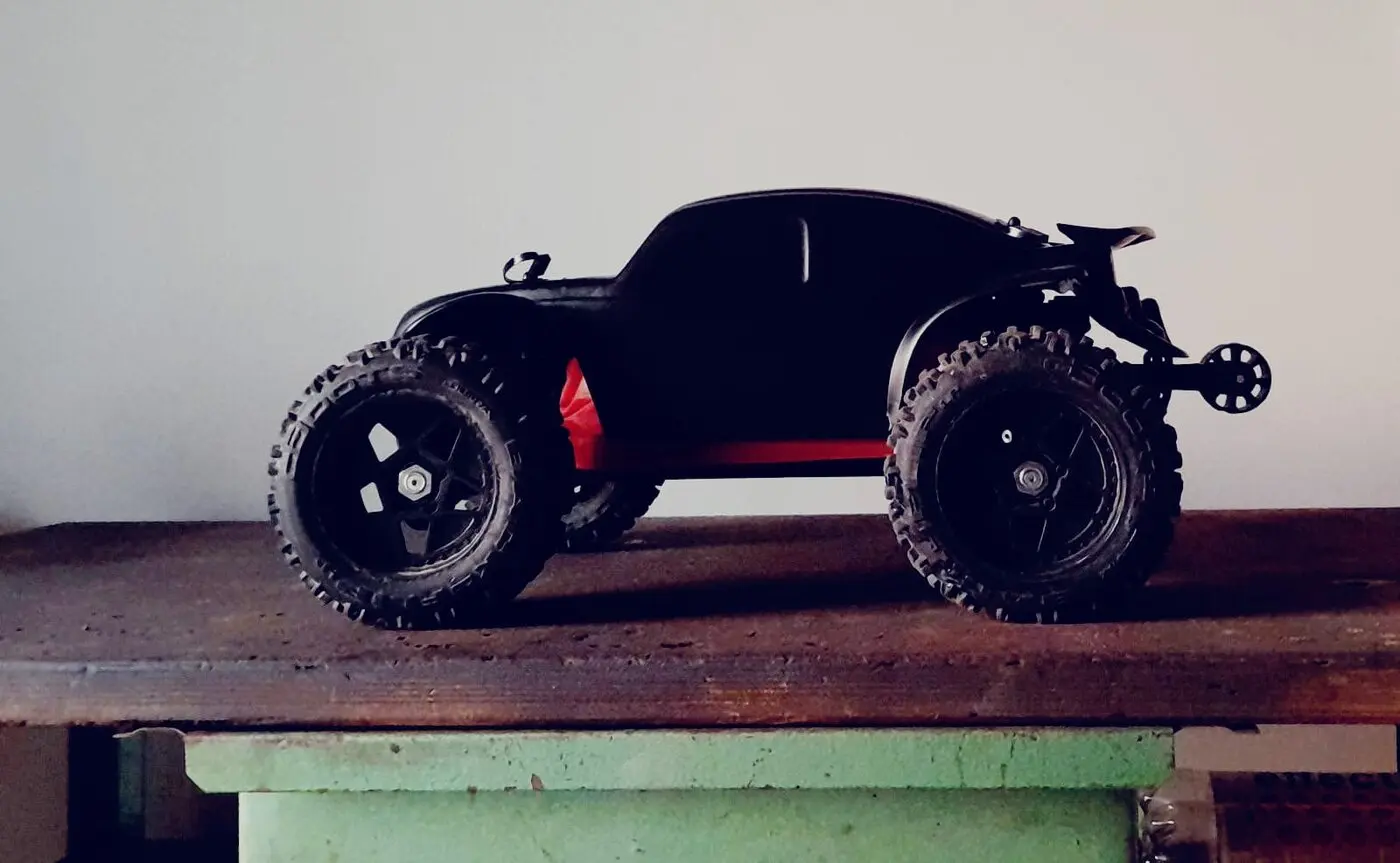

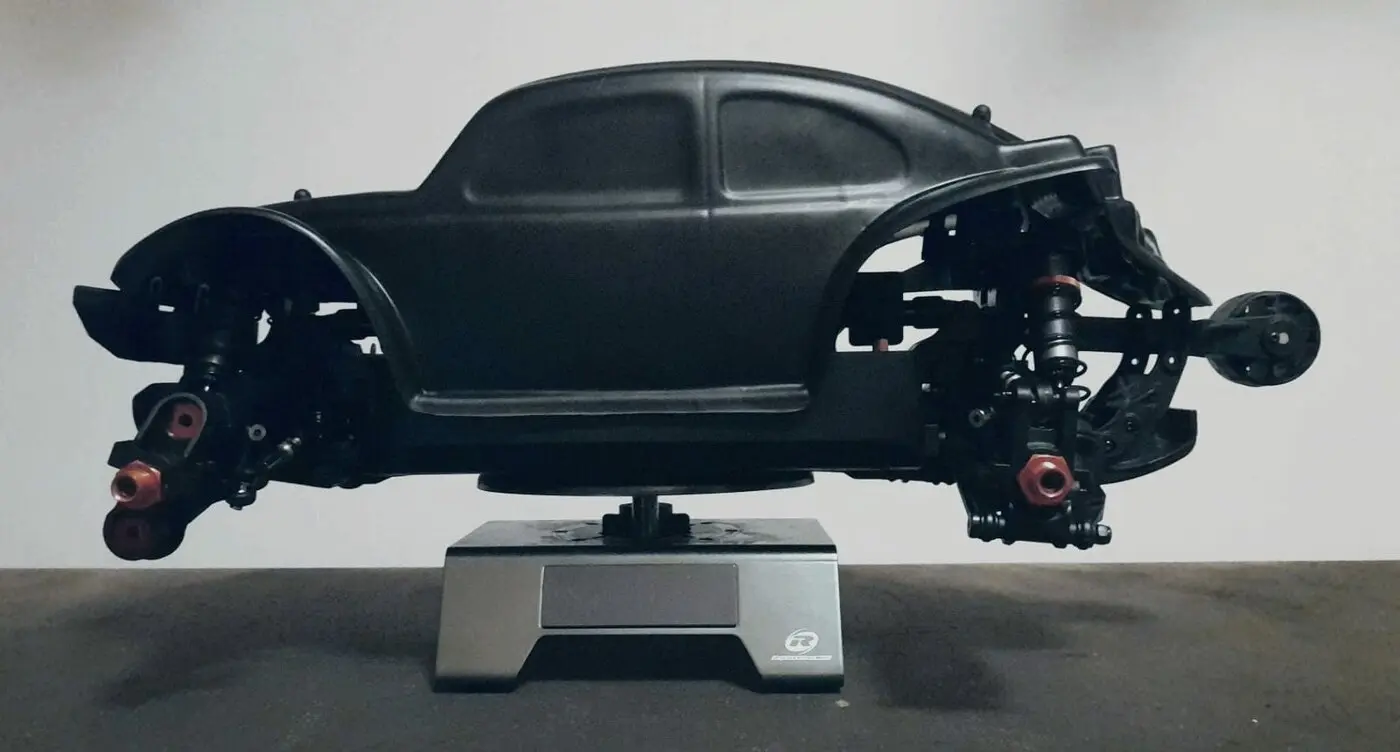

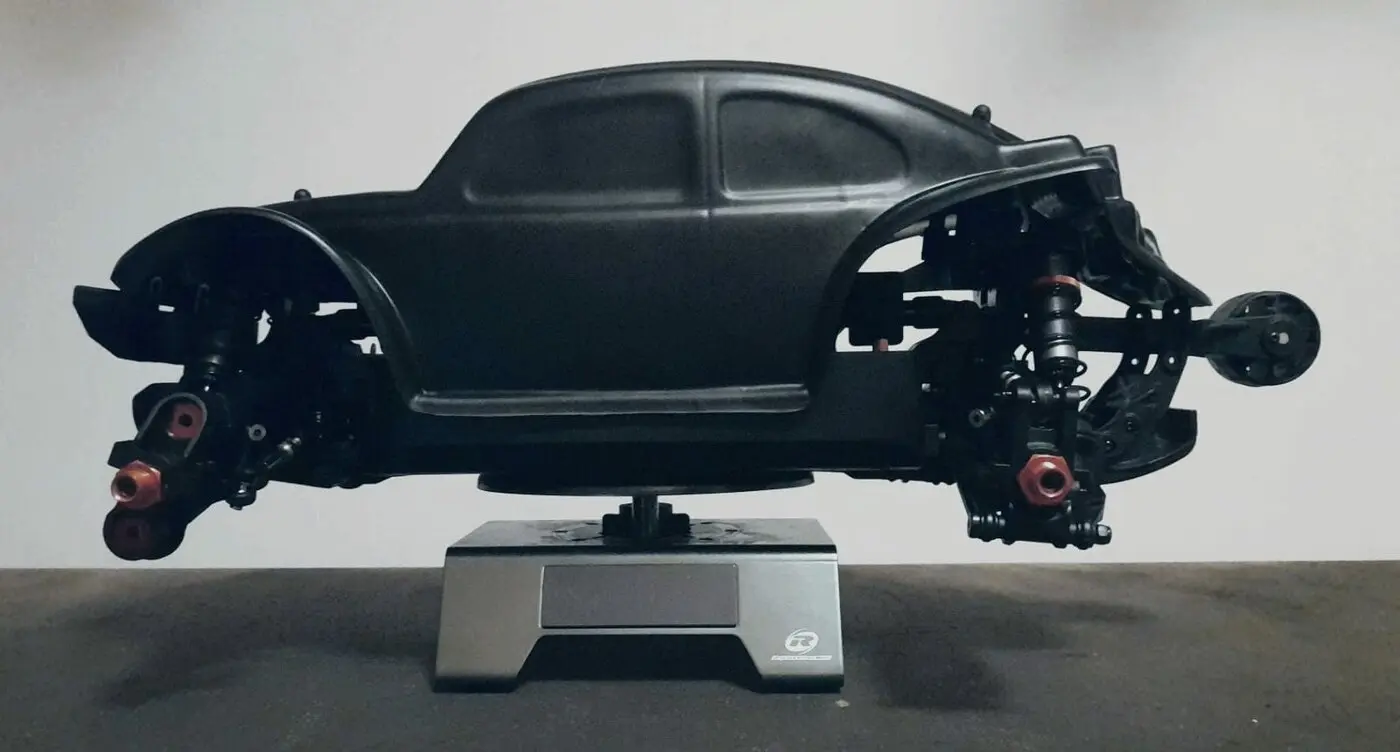

Hi, I tried this one here and for some reasons became a project... body is an unbreakable by probody RC and fits perfectly. Just needed to get longer body pins in the rear. What Do you think? View attachment 162View attachment 160
Click to expand...
Love me a bug body! Nice one.

I’ve got a proline bug body that might be seeing the skeet skeeter

RCproponent said:
I’m wondering with the body mount issue folks are having, if arrma mounts will fit lol
Click to expand...
I've kept the stock ones in the front and replaced the ones in the rear with ARRMA mounts as I needed some longer shafts for the bug body. works perfectly. and as many people are thinking either ways these days ARP from Austria is already offering flexible TPU shafts for both mounting options. They are on the way to my place arriving on Monday and I'm going to send some pictures how they work and look like.

RCproponent said:
I’m wondering with the body mount issue folks are having, if arrma mounts will fit lol
Click to expand...
Here's my observations/some rough measurements:
OC6 SKETER

Front to back ( length to post center):
- 12 1/8" and 11 1/4"

Width F
- 2" and 3 7/16" F&R

Width R
- 2 7/8"

Mount offset F &R:
- 0 and 1/4" 0

Mounting holes on the towers for the post mounts are identical, both are 3/8" on center.
With an adapter plate you could modify the width settings in the Sketer up front to accommodate pre drilled bodies or you could cheat using the OC6 rear mounts and gain 1/2" in spacing side to side. At the rear you can also gain 1/2". The rear mounts are offset from the OC6.
As you can see the shock mounts are the defining factor the TC, especially up front. They are much close together compared to the wider chassis set up in the OC6.

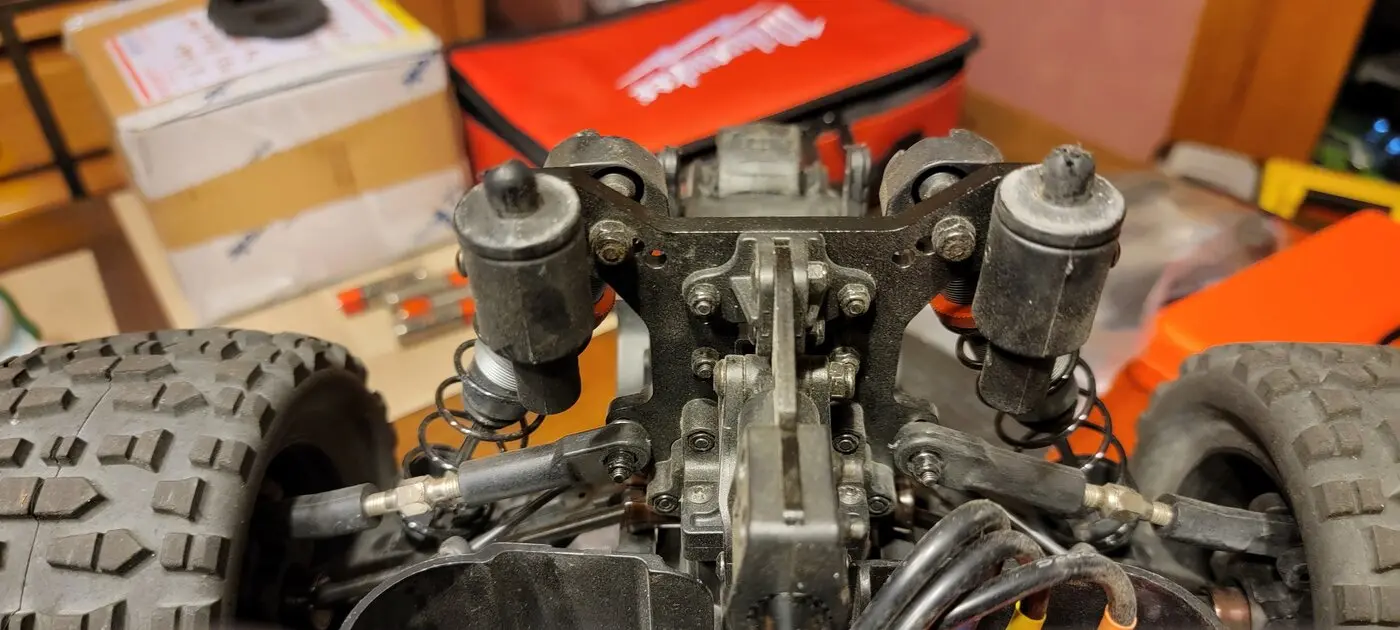

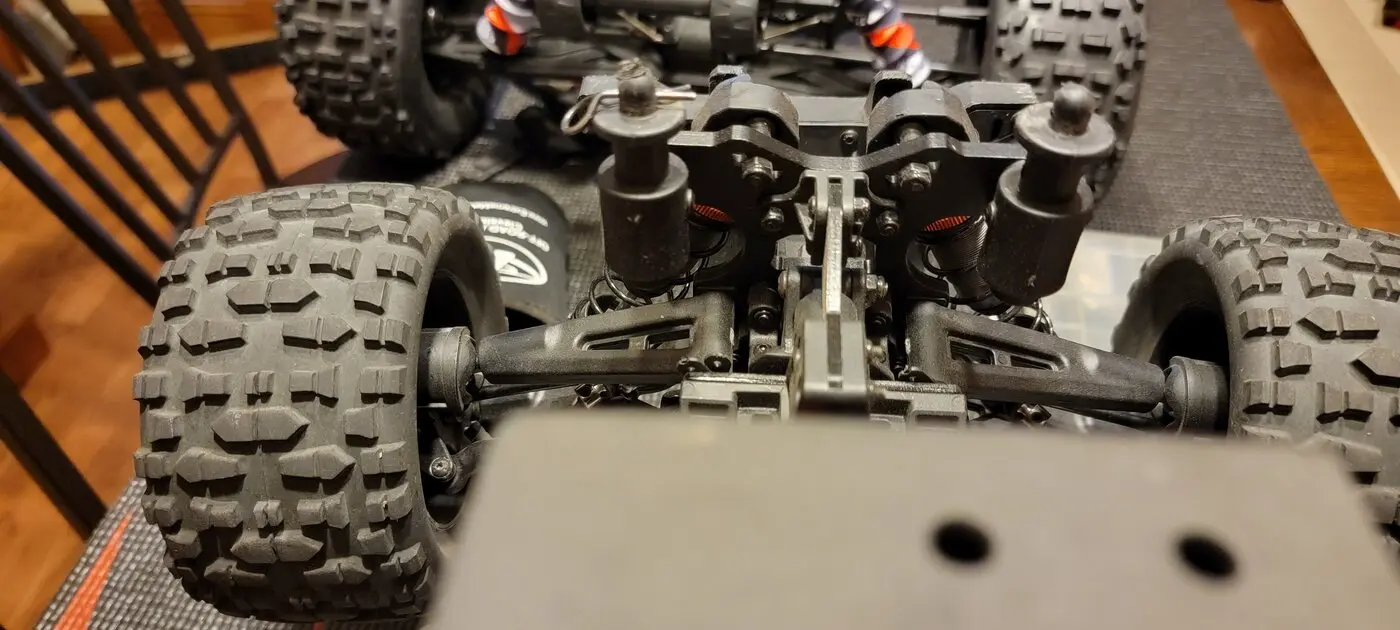

OC6:

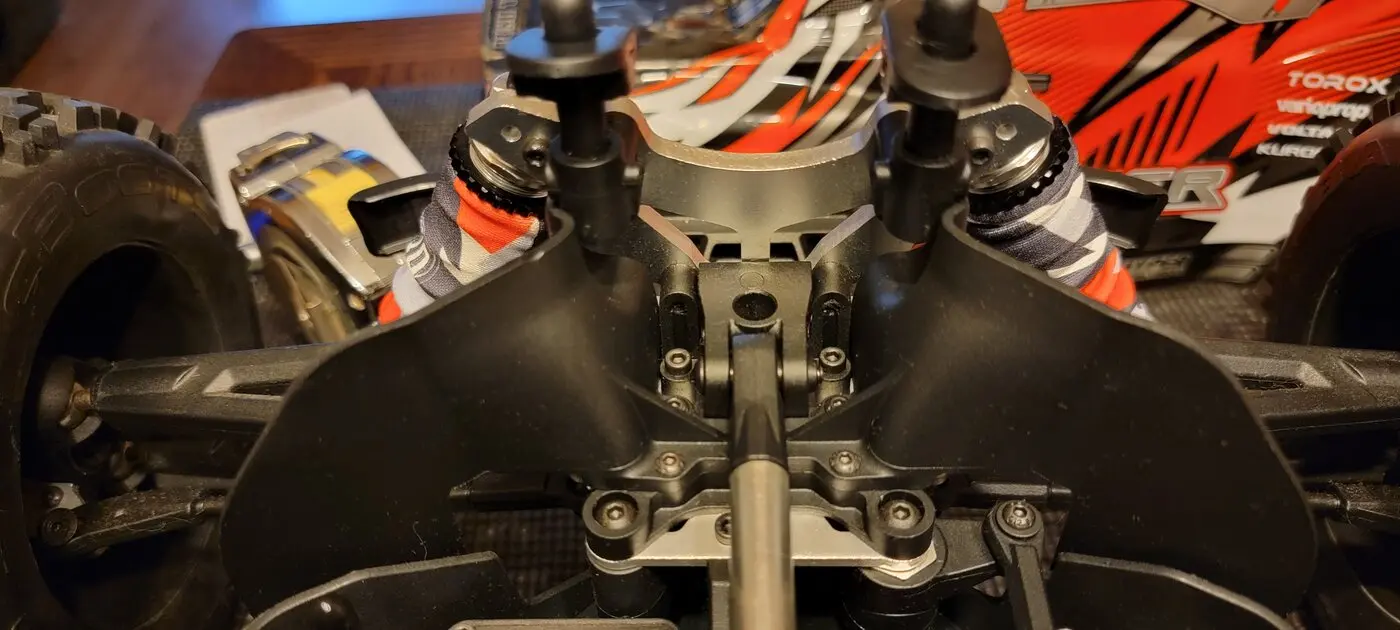

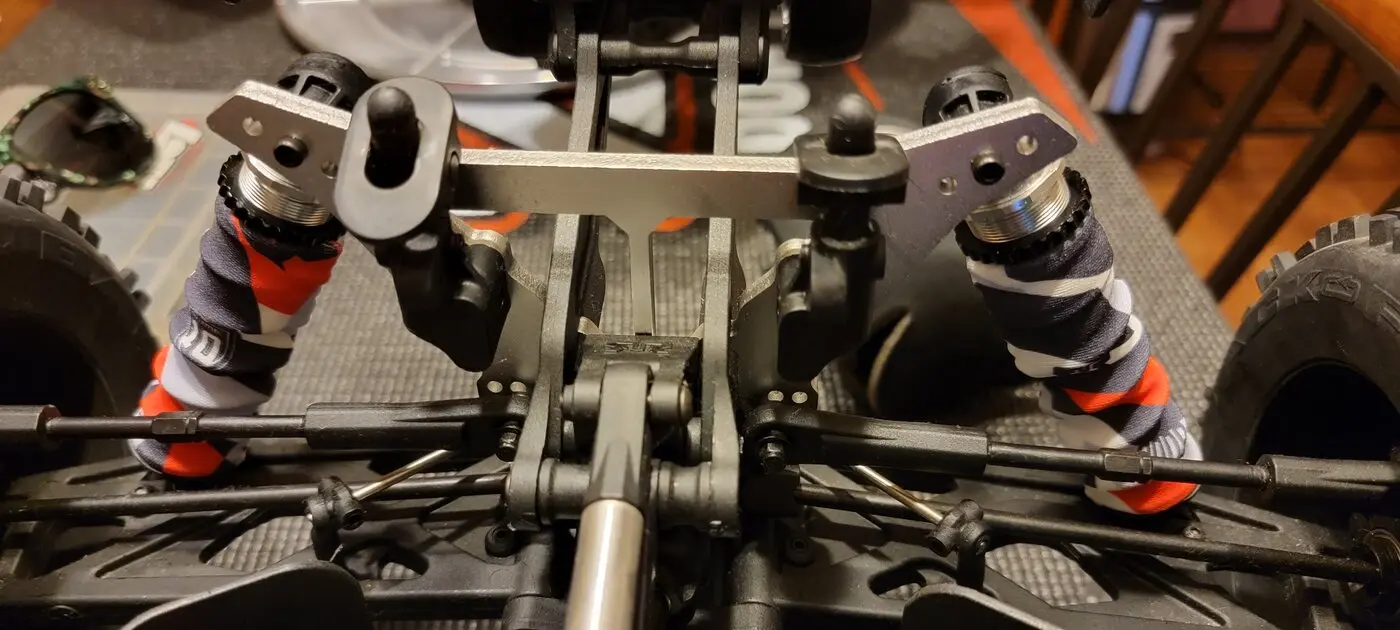

SKETER:



svenvisser said:
I've kept the stock ones in the front and replaced the ones in the rear with ARRMA mounts as I needed some longer shafts for the bug body. works perfectly. and as many people are thinking either ways these days ARP from Austria is already offering flexible TPU shafts for both mounting options. They are on the way to my place arriving on Monday and I'm going to send some pictures how they work and look like.
Click to expand...

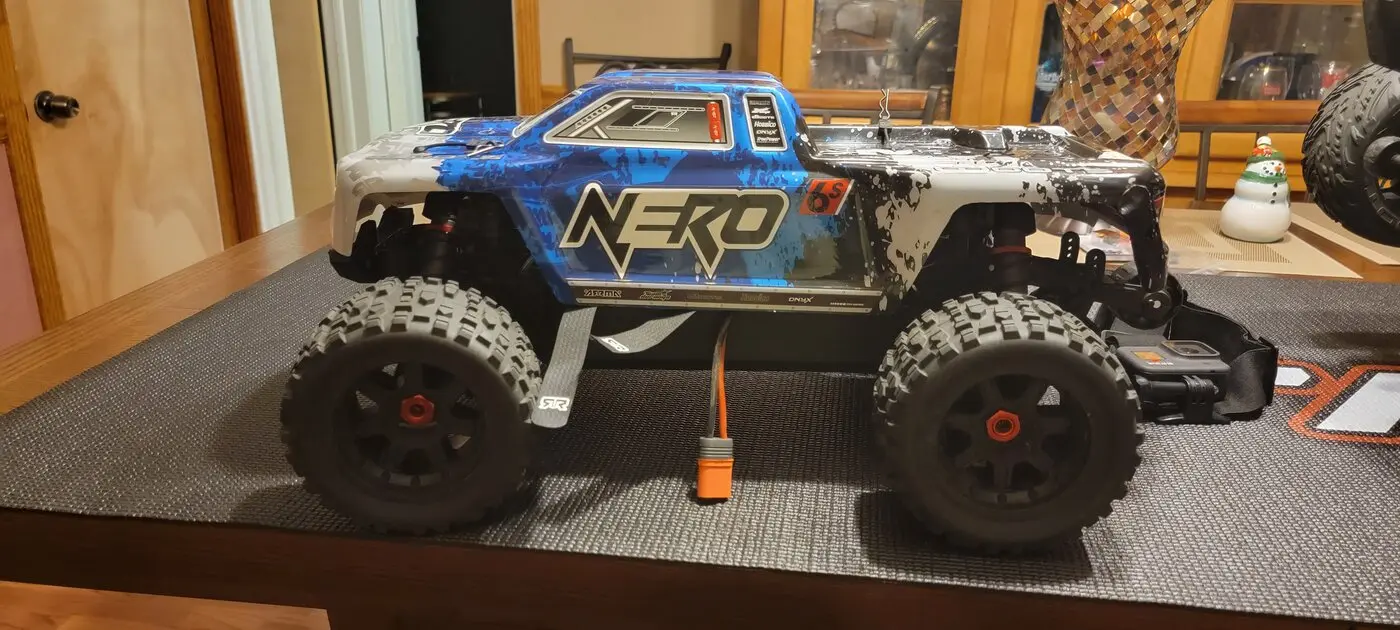

Hey mate, throw up a link for those ARP parts. Are you using the bug bodies I've been seeing for the Nero chassis?

I'll just throw this out there, If anyone wants to get me a skeeter I will buy some bodies....Just trying to be helpful and all :D

JPWarrior_KRX said:
Here's my observations/some rough measurements:
OC6 SKETER

Front to back ( length to post center):
- 12 1/8" and 11 1/4"

Width F
- 2" and 3 7/16" F&R

Width R
- 2 7/8"

Mount offset F &R:
- 0 and 1/4" 0

Mounting holes on the towers for the post mounts are identical, both are 3/8" on center.
With an adapter plate you could modify the width settings in the Sketer up front to accommodate pre drilled bodies or you could cheat using the OC6 rear mounts and gain 1/2" in spacing side to side. At the rear you can also gain 1/2". The rear mounts are offset from the OC6.
As you can see the shock mounts are the defining factor the TC, especially up front. They are much close together compared to the wider chassis set up in the OC6.
OC6:
View attachment 480View attachment 481

SKETER:

View attachment 482View attachment 483


Hey mate, throw up a link for those ARP parts. Are you using the bug bodies I've been seeing for the Nero chassis?
Click to expand...

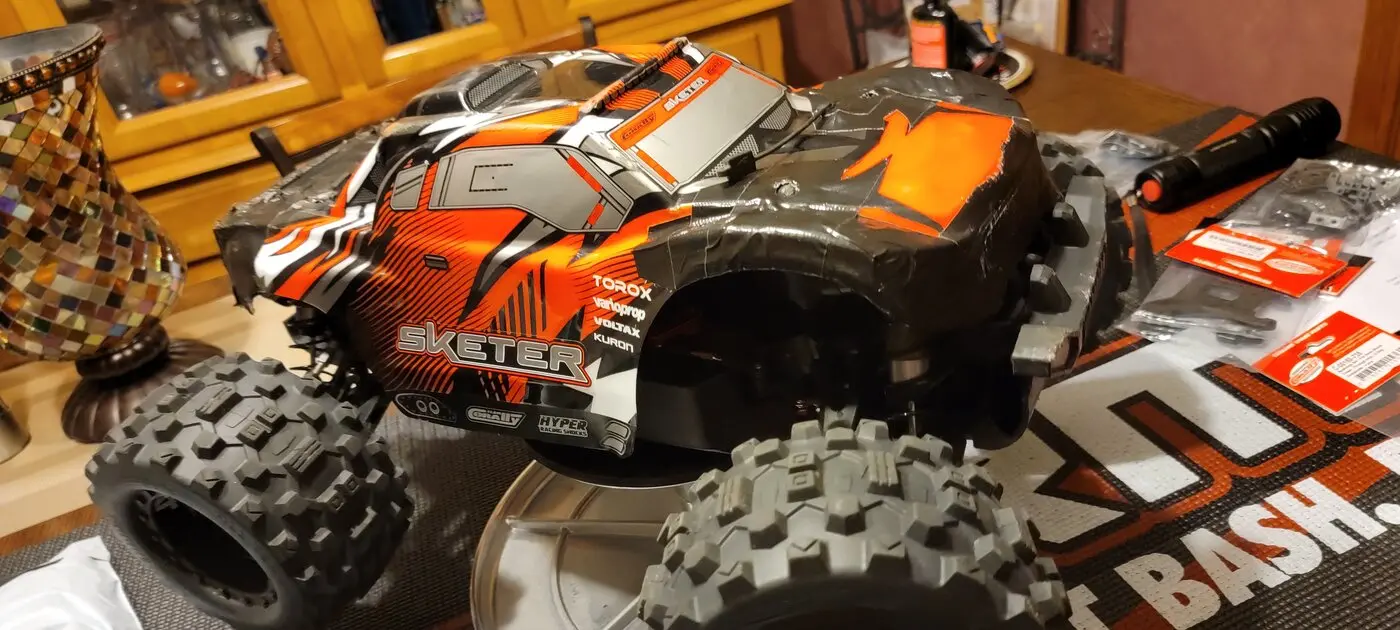

Hi, here's the link to the ARP site - https://www.arpdesign.at/kategorien/corally/sketer/ ... I've received my first delivery this week incl. body mounts and front bumper 'stiffener'. Will keep you posted..

svenvisser said:
Hi, here's the link to the ARP site - https://www.arpdesign.at/kategorien/corally/sketer/ ... I've received my first delivery this week incl. body mounts and front bumper 'stiffener'. Will keep you posted..
Click to expand...
They got some clever items there! I like the rear wheel carrier. So much easier and less time consuming using that instead of the tiny spacers which you'll probably lose eventually.
